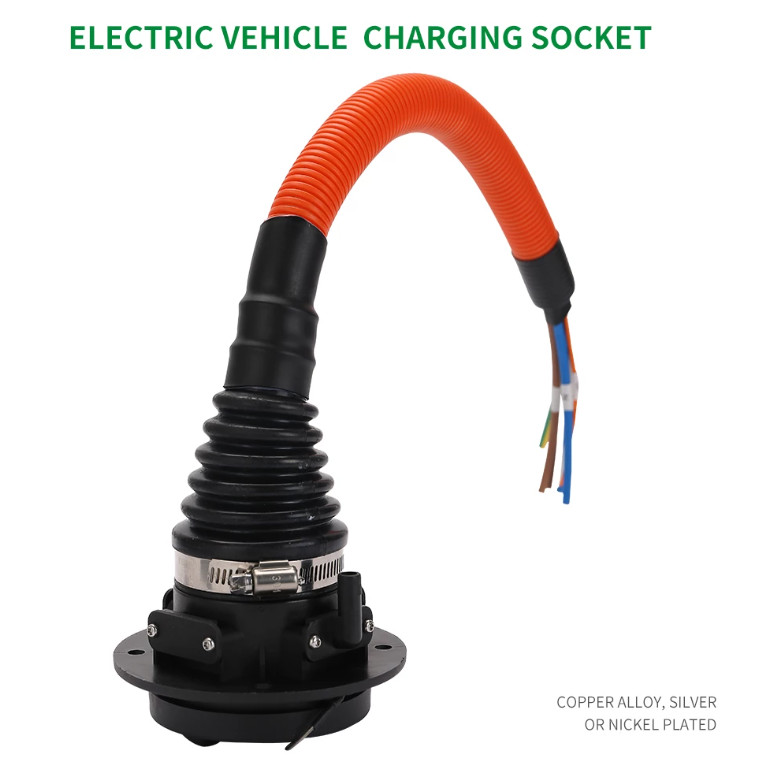

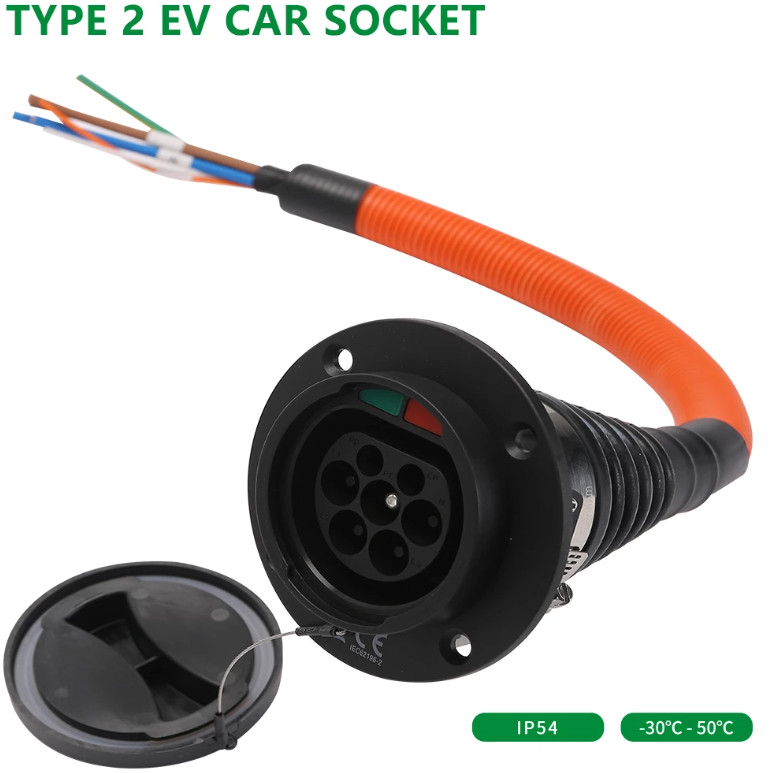

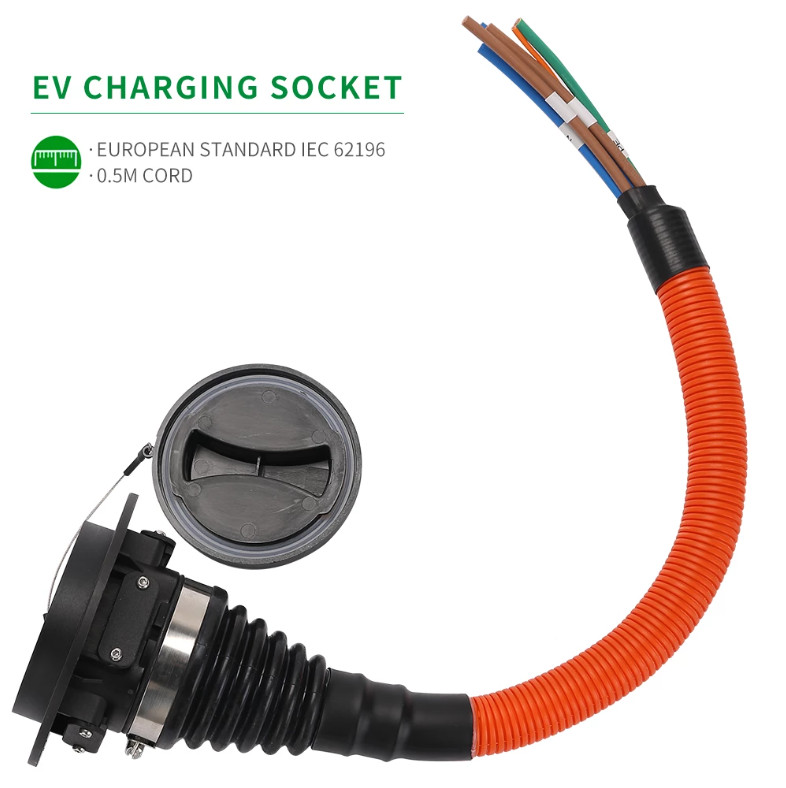

32A Electric Vehicle Charging Socket 50Cm Cord EV Type 2 IEC62196-2 EV

1. Soket pengisian AC tipe 2 ini dengan penutup perlindungan, aman untuk pemasangan depan.

2. Soket inlet pengisian AC tipe 2 ini bersertifikat CE, TUV dan RHOS, aman dan andal.

Electrical performance :
Rated at this time: 16A/32A
Rated voltage: 250V AC, single phase or 415V AC, three phase for option
(Please note the voltage you need when inquiry)

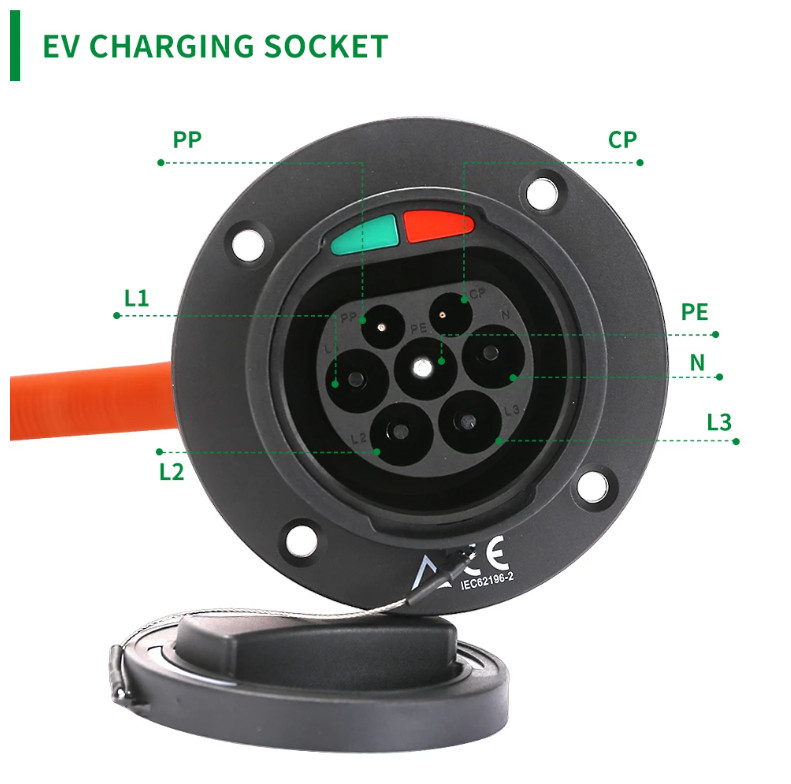

Standar: IEC 62196 socket standard type 2
Insulation resistance: > 1000MΩ (DC500V)
Terminal temperature rise.: <50K
Withstand voltage: 2000V
Mechanical life: No load plug/unplug > 10000 times
Materia : Thermoplastic, flame retardant grade UL94-0;
Pin: copper alloy, silver + thermoplastic on the top
operating temperature: -30 ℃ ~ + 50 ℃
IP protection class : IP 44
