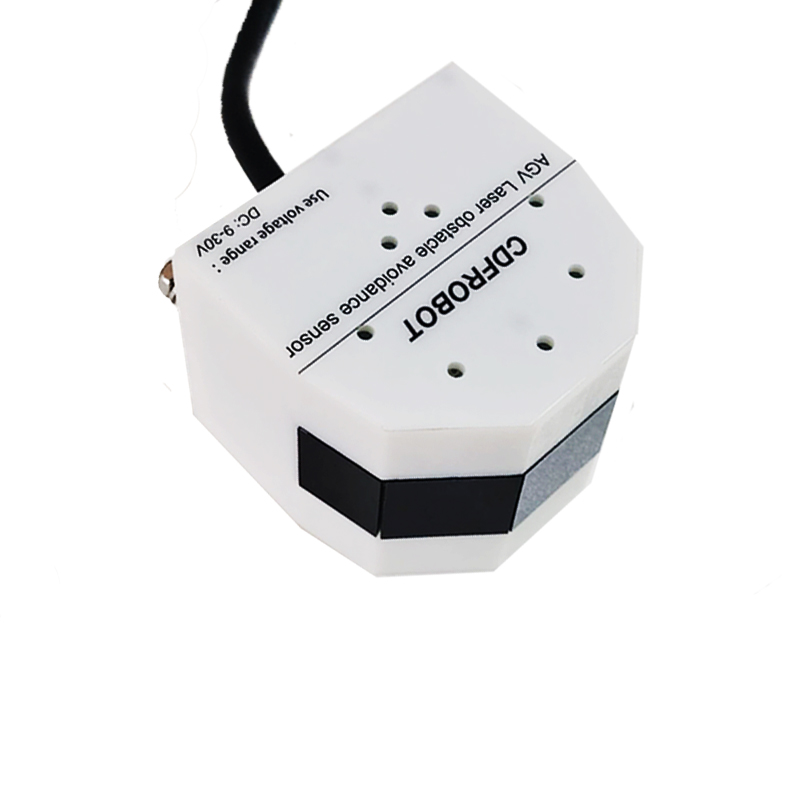

AGV laser obstacle avoidance sensor 1-400CM Modbus communication

Description

CCF-LAS4-4M laser obstacle avoidance sensor 1-400CM Modbus communication protocol
Power supply voltage: DC 6-30v;

Maximum consumption current: 80mA;

Output interface: RS232 or RS485 output;

Communication protocol: Modbus protocol;

Detection effective distance: 1-400cm;

Recommended installation height: more than 10 mm;

Horizontal detection angle: less than or equal to 180 degrees;

Vertical detection angle: less than or equal to 15 degrees;

Response speed: 30ms;

Temperature range: – 40 ℃ – + 85 ℃;

Working humidity: 10% – 90% relative humidity;
