Description
Ultrasonic obstacle avoidance sensor
(Linear detection)
Switch output
CCF-SR1-OC
click the link
Serial output RS232/68 protocol
CCF-SR1-26
click the link
Serial output RS232/Modbus protocol
CCF-SR1-2M
click the link
Serial output RS485/68 protocol
CCF-SR1-46
click the link
Serial output RS485/Modbus protocol
CCF-SR1-4M
click the link
Ultrasonic obstacle avoidance sensor
(Fan detection)
Switching NPN output
CCF-SR2-NPN
click the link
Switching PNP output
CCF-SR2-PNP
click the link
Serial output RS232/68 protocol
CCF-SR2-26
click the link
Serial output RS232/Modbus protocol
CCF-SR2-2M
click the link
Serial output RS485/68 protocol
CCF-SR2-46
click the link
Serial output RS485/Modbus protocol
CCF-SR2-4M
click the link

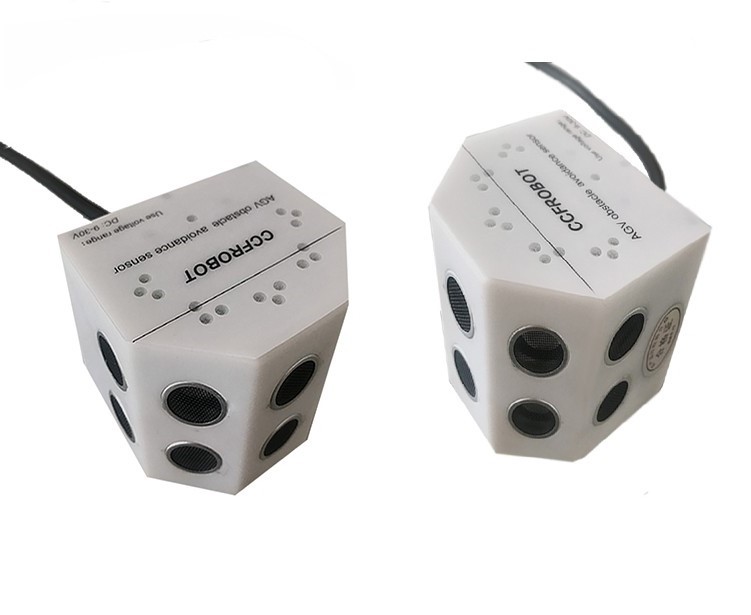

CCF-SR2 Series Ultrasonic Obstacle Avoidance Sensor Manual Switching NPN output The sensor model applicable to this manual: CCF-SR2-NPN
1. Product introduction:
Support two distance signal output;
5 high-sensitivity ultrasonic probes;
Switching transistor NPN output;
Support serial port to set the sensing distance;
Support probe enable setting;
Power status indicator display;
Working status indicator display;
Signal output status display;
Industrial grade three-proof design, wide voltage, low power consumption;
2. Description of electrical parameters:
Power supply voltage: DC 6-30V;
Maximum current consumption: 80mA; output electrical mode: OC gate (NPN open collector output) detects a valid signal and connects to ground;
Detection effective distance: 3-400CM;
Recommended installation height: greater than 10MM;
Horizontal detection angle: less than or equal to 180 degrees;
Vertical detection angle: less than or equal to 15 degrees;
Response speed: 30ms;
Operating temperature range: -40℃—+85℃;
Working humidity: 10% -90% relative humidity;
3. Wiring instructions:
4. Description of working status signal:
V. Description of indicator status:
Sixth, the size description:
