Description:

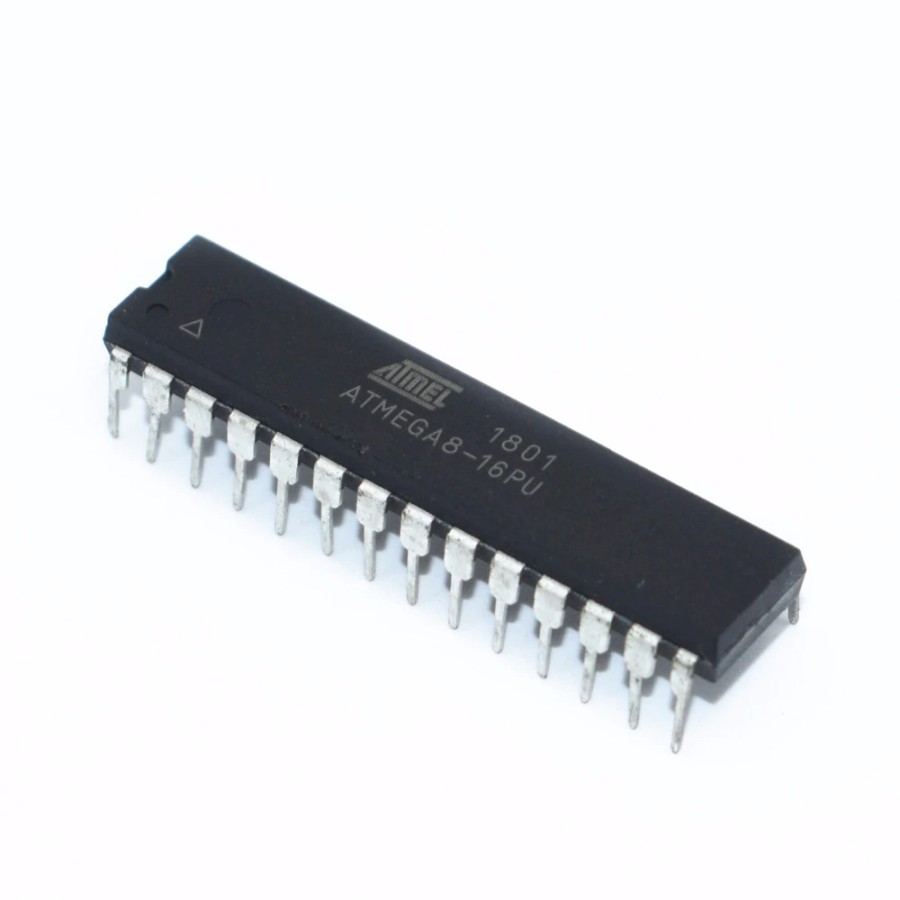

The Atmel ATMEGA8-16PU is a low power CMOS 8 bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA8-16PU achieves throughputs approaching 1MIPS per MHz allowing the system designer to optimise power consumption versus processing speed.
Advanced RISC architecture
130 powerful instructions
32 8 general purpose working registers
Fully static operation
Up to 16MIPS throughput at 16MHz
On chip 2 cycle multiplier
High endurance non volatile memory segments
8Kbytes of in system self programmable flash program memory
512Bytes EEPROM
1Kbyte internal SRAM
Data retention: 20 years at 85C/100 years at 25C
Optional boot code section with independent lock bits
In system programming by On chip boot program
True read-while-write operation
Programming lock for software security
Peripheral features
Real Time Counter with separate oscillator
Three PWM channels
Six Channel, 10 bit accuracy
Byte oriented two wire serial interfaceSPEK:
Controller Family/Series: ATmega
CPU Speed: 16MHz
Program Memory Size: 8KB
RAM Memory Size: 1KB
No. of Pins: 28Pins
MCU Case Style: DIP
No. of I/O’s: 23I/O’s
Embedded Interface Type: I2C, SPI, UART
Supply Voltage Min: 4.5V
Supply Voltage Max: 5.5V
The Atmel ATMEGA8-16PU is a low power CMOS 8 bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA8-16PU achieves throughputs approaching 1MIPS per MHz allowing the system designer to optimise power consumption versus processing speed.
Advanced RISC architecture
130 powerful instructions
32 8 general purpose working registers
Fully static operation
Up to 16MIPS throughput at 16MHz
On chip 2 cycle multiplier
High endurance non volatile memory segments
8Kbytes of in system self programmable flash program memory
512Bytes EEPROM
1Kbyte internal SRAM
Data retention: 20 years at 85C/100 years at 25C
Optional boot code section with independent lock bits
In system programming by On chip boot program
True read-while-write operation
Programming lock for software security
Peripheral features
Real Time Counter with separate oscillator
Three PWM channels
Six Channel, 10 bit accuracy
Byte oriented two wire serial interfaceSPEK:
Controller Family/Series: ATmega
CPU Speed: 16MHz
Program Memory Size: 8KB
RAM Memory Size: 1KB
No. of Pins: 28Pins
MCU Case Style: DIP
No. of I/O’s: 23I/O’s
Embedded Interface Type: I2C, SPI, UART
Supply Voltage Min: 4.5V
Supply Voltage Max: 5.5V
