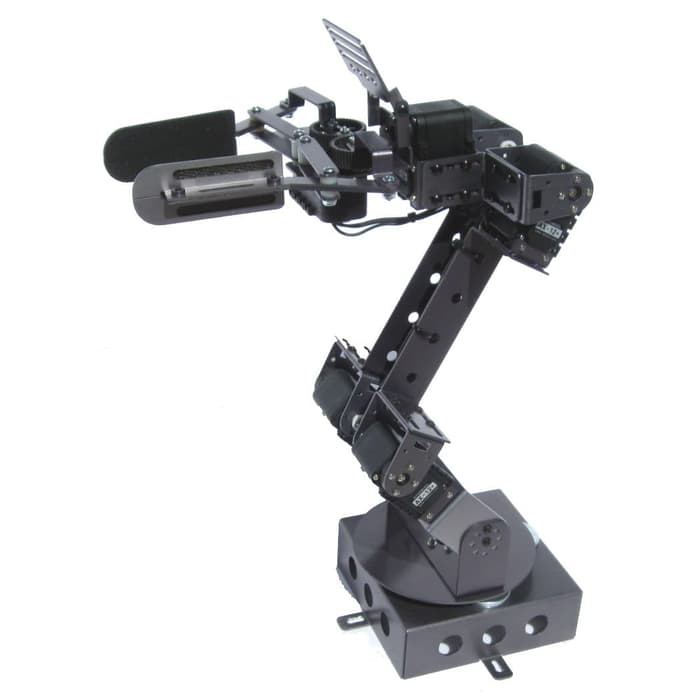

AX-18A Smart Robotic Arm


SKU: 4dcbc53be8da Category:


Deskripsi AX-18A Smart Robotic ArmKey Features
1mbs serial communication protocol
Dual actuator design in the shoulder and wrist axis for maximum lifting capability (2.5 to 3.5+ pound (1.58kg to kg)
Open source platform
Compatible with MATLAB,LABVIEW,ROS and other popular programs
Rugged, all aluminum construction for maximum kinematic accuracy (1mm – 3mm)
Hard Anodized finish for maximum scratch and corrosion resistance
Compatible with ANY micro-controller/computer control system / programming language (Open Source!)
Offers more speed and torque than the AX-12A Smart Robotic arm (AX-18A – 18kgf/cm and 97 rpm vs. AX-12A – 15kgf/cm and 59 rpm)
The only robotic arms that feature feedback for position, voltage, current and tempertature
Smooth, sealed, self lubricating ball bearing turntable
Fully adjustable initial base angle
(3) integrated mounting tabs for easy mounting to a fixed or mobile base
(5) Gripper options to choose from
Full control over position (300 degrees), speed, and torque in 1024 increments
Automatic shutdown based on voltage or temperature with status indicator LED
Sensor engineered gripper design accepts, pressure sensors, IR detectors, CCD cameras and more!

Additional information

Weight 2000 g
