Camera Omni vision / omnivision Vstone 30fps 8.0 Megapixels


SKU: 02ebf7b792b7 Category:


Deskripsi Camera Omni vision / omnivision Vstone 30fps 8.0 Megapixelsmodule Size : 38mm * 38mm 32mm * 32mm
Temperature (Operation) : -20degree to 70 degree
Temperature (Stable Image): 0 degree to 60°degree
Camera Board Assembly technique : SMT (ROSH)
Focus : Manual
Object distance: 5CM-100M
Resolution : 600LW/PH (Center)
interface :USB 2.0 High Speed
protocol : USB Video Class(UVC)
Power : USB bus power
Operating system request: Win XPWin7Win8AndroidLinuxMac OS
Certifications : FCC and CE
Sensor Type: Sony (1/3.2” )
Active Array Size : 3264X2448
Minimal illumination : 0.5Lux
Maximum Image Transfer Rate :
3264X2448 MJPG 15fps YUY2 2fps
2592X1944 MJPG 15fps YUY2 3fps
2048X1536 MJPG 20fps YUY2 3fps
1600X1200 MJPG 20fps YUY2 10fps
1280X960 MJPG 20fps YUY2 10fps
1024X768 MJPG 30fps YUY2 10fps
800X600 MJPG 30fps YUY2 30fps
640X480 MJPG 30fps YUY2 30fps
S/N Ratio : 44dB
Dynamic Range : 83.5dB
Shutter : Rolling shutter/ frame exposure
Lens Type
Lens Construction : 5G+IR
Focal Length : 3.6mm
F/No : 1.8
BFL(Optical): 6.5mm
FOV: 105 degree
IR Filter : 650±10nm
Output Formats : YUYV/MJPEG
Adjustable parameters Brightness Contrast Hue Saturation Sharpness Gamma White
Balance Exposure Focus
Package LQFN-40pin
USB Cable 3M(1M/5M Optional)

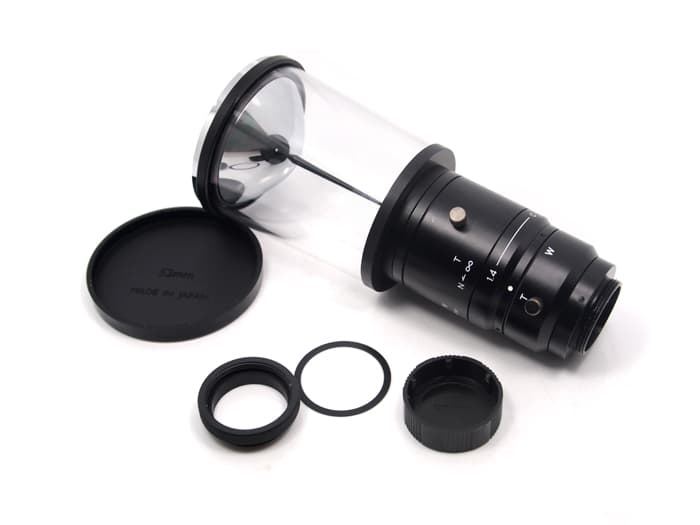

The omnidirectional sensor is the image sesor that can observe 360-degrees at a time.Surrounding scenery is reflected to the omnidirectional mirror, and it takes a picture of the image with the camera upward installed.

Vertical view is upper side 10-15 degree and lower side about 55 degree.

Omni Directional Sensor
The omnidirectional sensor is the simple structure unlike the pan-tilt camere has moving parts.So it is easy to install, operate and maintenance.

It consist of three parts, the omnidirectional attachment, C mount lens and CCD camera.(* We are selling the set of the omnidirectional attachment + C mount lens and the omnidirectional attachment only.)

Additional information

Weight 1000 g
