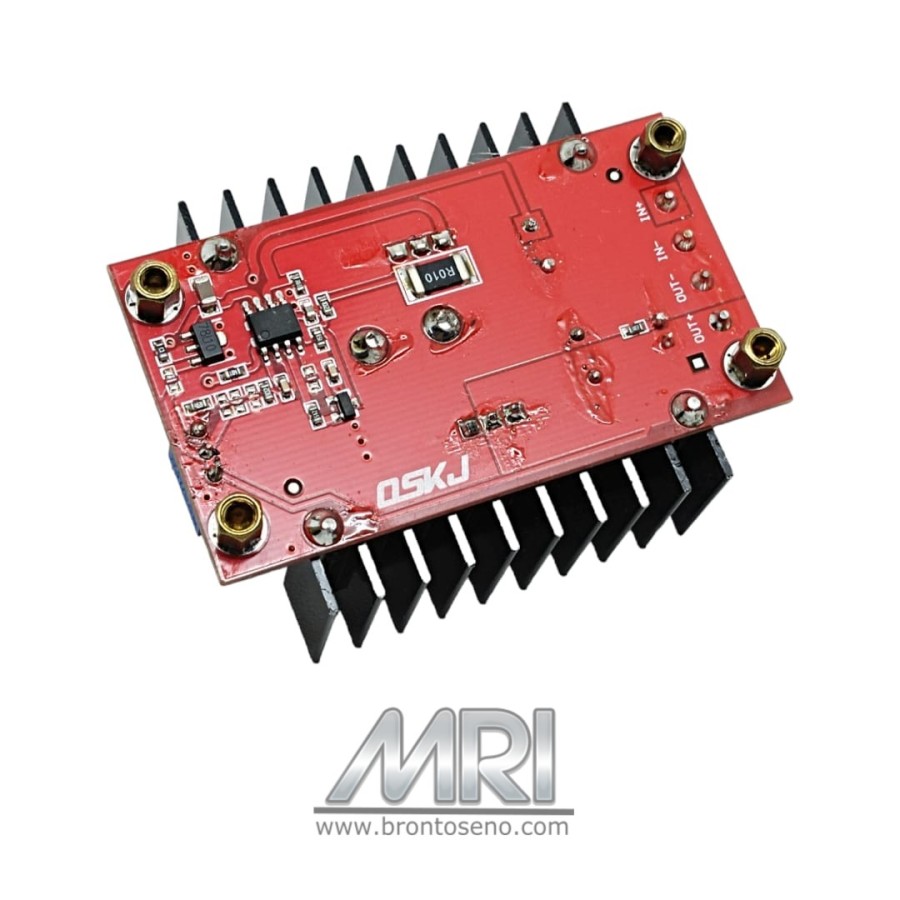

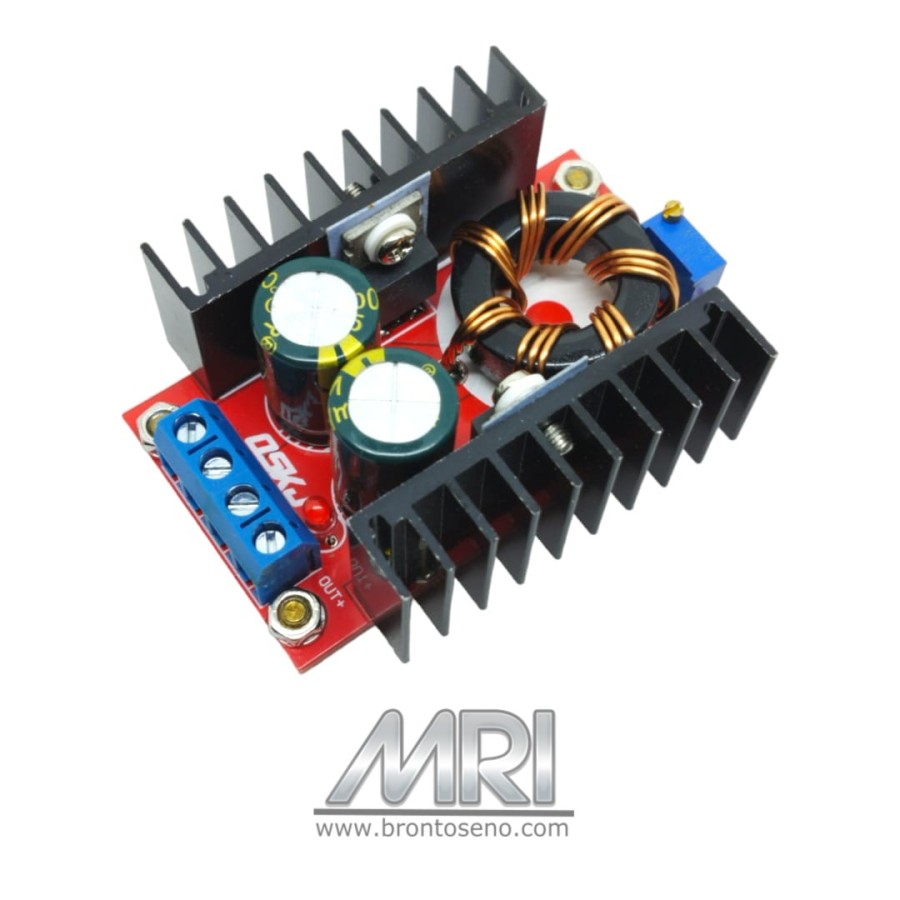

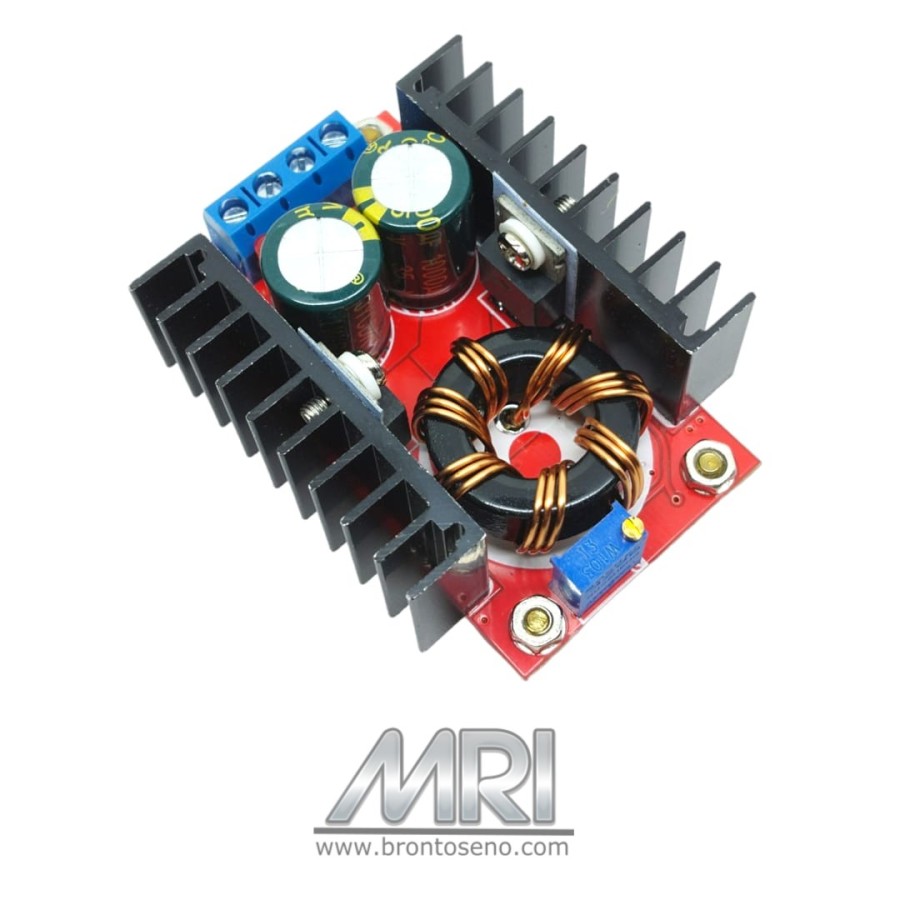

Converter DC-DC 10-32V to 12-35V Step Up Boost Module Voltage 150W 6A

Rp35.000

83 in stock

Categories: ,

Description

Easy to drive 65W 90W dual-core notebook.
Use a 12V battery drive 19V 3.42A notebook, the module temperature about 45c .
Conversion efficiency: 94% (measured at Input 16V, output 19V 2.5A)
Output Ripple: 2% (MAX) 20M-bandwidth
Operating Temperature: Industrial (-40c to +85c) (ambient temperature exceeds 40c, lower power use, or to enhance heat dissipation)

Input voltage :10-32V
Output voltage: 12-35V (adjustable)
Output Current: 10A (MAX)
Input Current: 16A (MAX) (Please enhance heat dissipation if more than 10A)
Output power: natural cooling 100W (MAX), enhance heat dissipation 150W (MAX)

Applications:
-Car laptop power supply: connected to 12V power supply, output voltage regulation as your notebook need. for example 20V.
-Boost charger. You can use the 12V power supply to charge battery more than 12V, for example 24V battery.(12-35V)
-DIY for output adjustable vehicle power supply, connect the 12V input, and output could be 14-35V(adjustable)



Additional information

Weight 55 g
