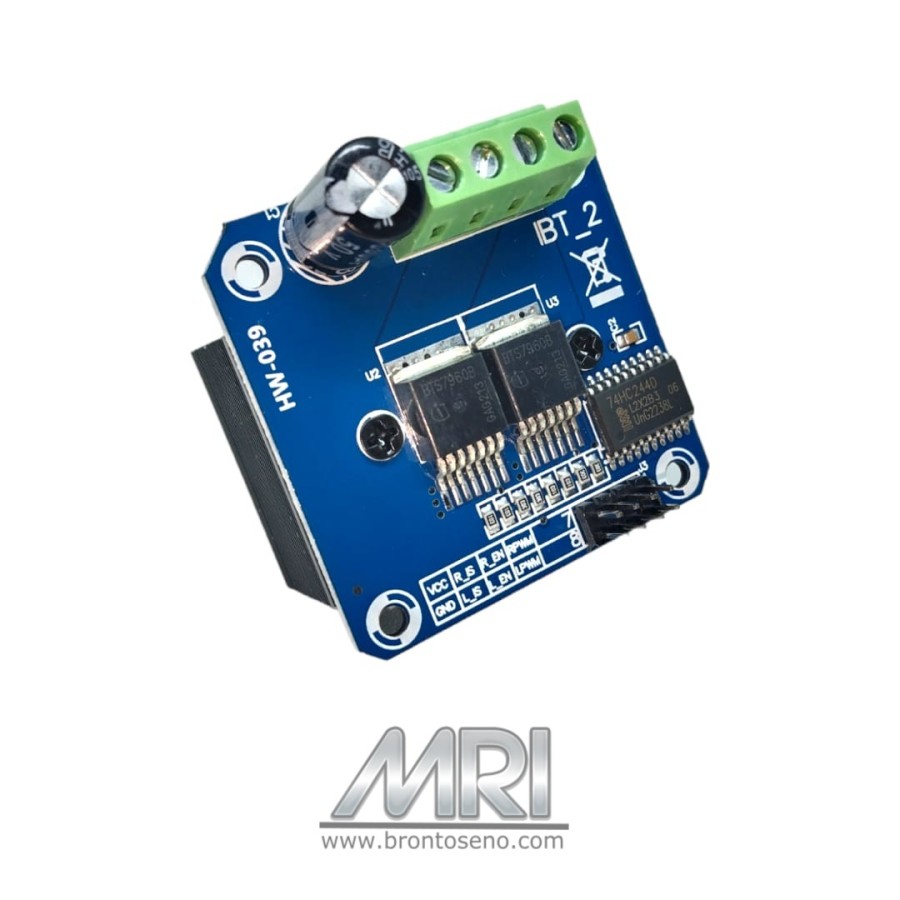

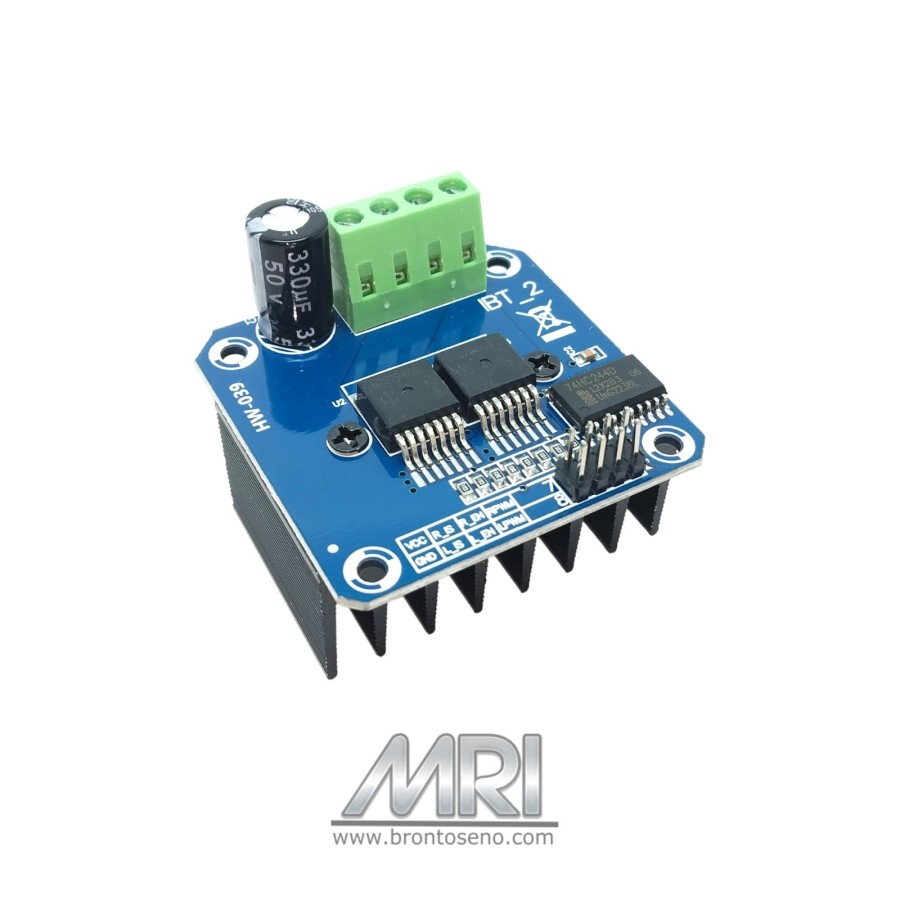

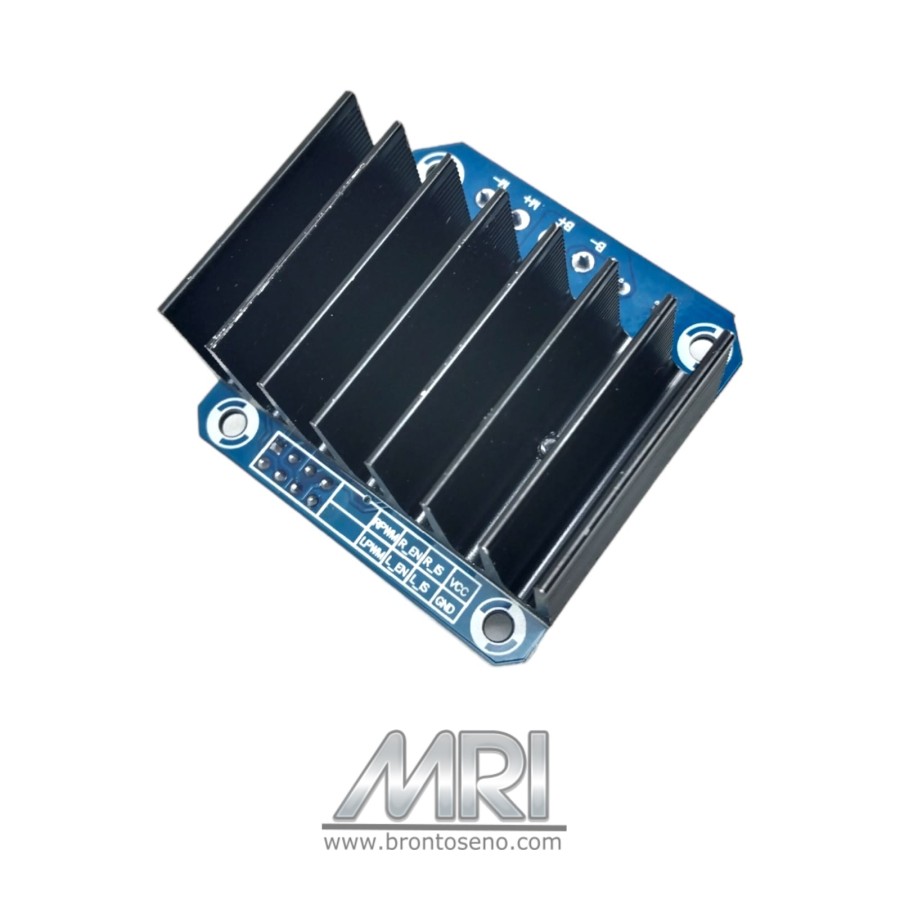

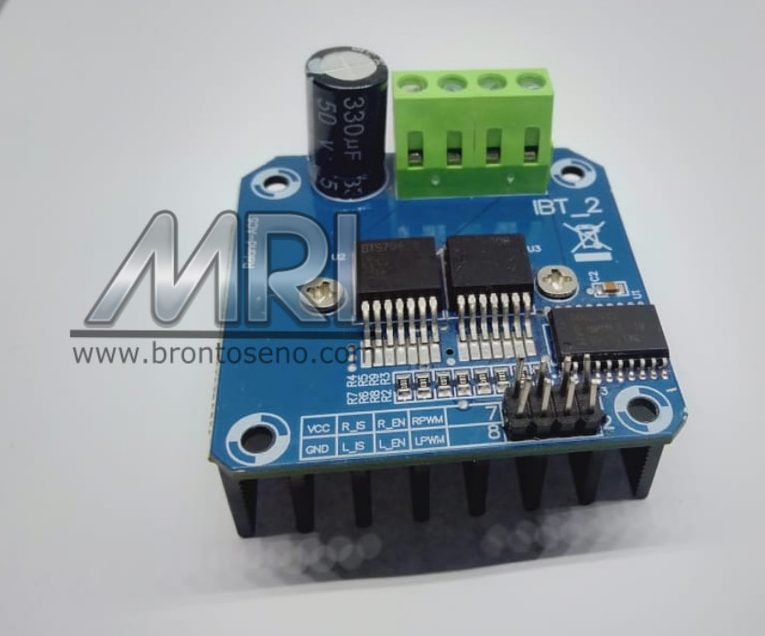

Deskripsi Driver motor 43A Bts7960 IBT2Motor Driver 43A BTS7960
The Motor Driver 43A BTS7960 uses an H-bridge driver module that composed by Infineon power drive chip, with overheating and overcurrent protection. Double BTS7960 H-bridge driver circuit, with strong drive and braking effect, uses 74HC244 chip to effectively isolate the microcontroller and the motor driver. It can operate at high current up to 43A.
Applications
Current diagnostic
Slope adjustment
Dead Time generation
Overtemperature, overvoltage, undervoltage, overcurrent protection
Short circuit protection
Specifications
Input voltage: 6V-27V
Model: IBT-2
Maximum current: 43A
Input level: 3.3-5V
Control mode: PWM or level
Duty cycle: 0-100%
Package list
BTS7960 module x 1
