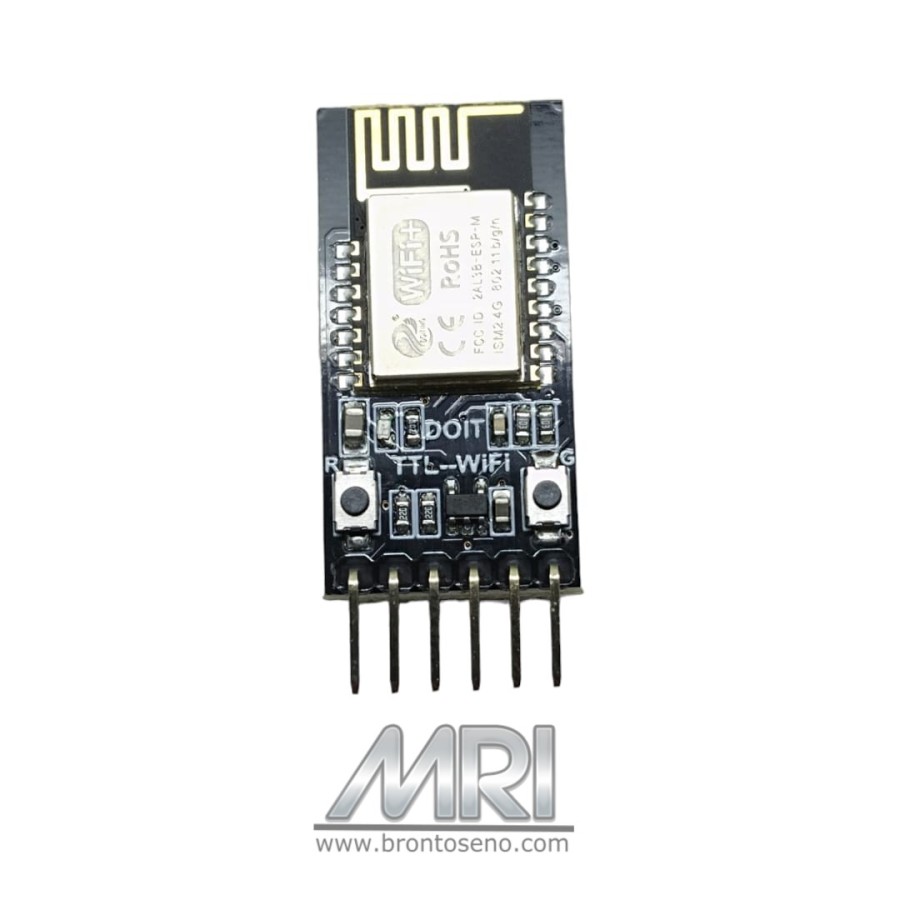

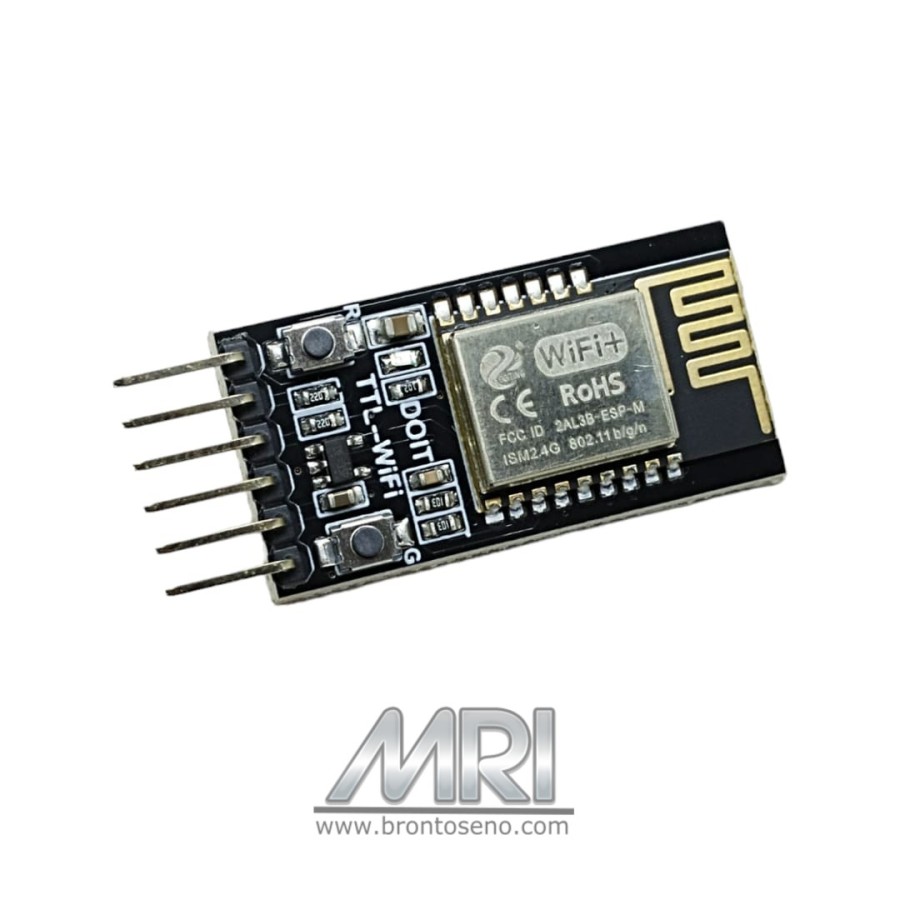

DT-06 TTL WiFi Module ESP-M2

Rp55.000

Categories: ,

Description

The TTL-WiFi module is developed based on our company’s ESP-M2 WiFi module, which leads to the serial port TTL, EN, STATE and other pins.

Feature:
-Fully compatible with the electrical interface and physical interface of the original Bluetooth transparent transmission module;
-Built-in industrial-grade transparent transmission firmware V3.0, reliable and stable, WEB interface configuration;
-Based on ESP-M2 high-performance WiFi module, the overall size: 34mm×17mm×4mm;
-Power supply voltage: 4.5V~6.0V, TTL voltage: 3.3V (compatible with 5.0V);

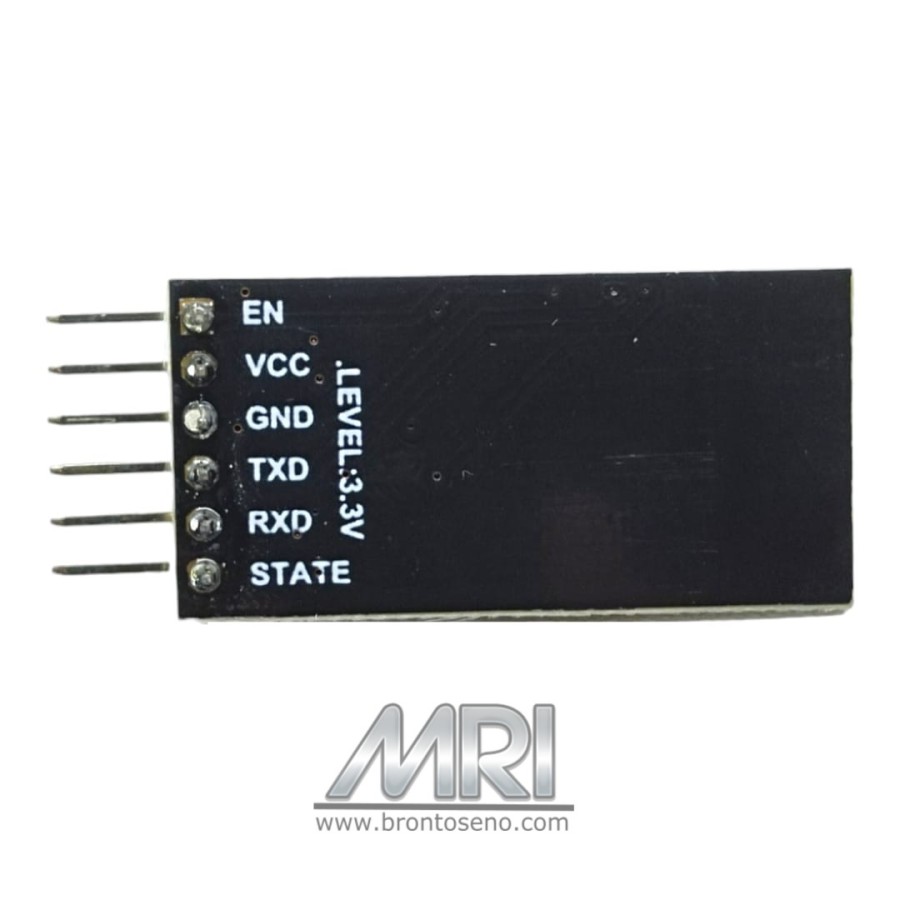

-Lead pins: STATE, TXD, RXD, EN;
-Average current: 80mA; 170mA when sending WiFi data; 20μA in deep sleep mode;
-Support serial AT command;
-Support reprogramming, OTA firmware upgrade;
-The serial port and WiFi data are transmitted seamlessly in real time;
-Built-in HTTP Web Server, support web page configuration parameters;
-WiFi supports three modes: AP, STA, AP+STA;
-Support automatic reconnection in WiFi STA mode and automatic reconnection in TCP Client mode;
-The serial port supports setting of baud rate, data bits, parity, stop bits, and packet time;
-Support baud rate (bps): 300/600/1200/2400/4800/9600/19200/38400/57600/74800/115200/
230400/460800/921600/1843200/3686400;
-Support AP enable, custom SSID/password, custom IP and network segment, etc.;
-Automatically scan surrounding hotspots, support STA enable, DHCP, custom IP and network segment, etc.;
-Support TCP Server, TCP Client, UDP Server, UDP Client and UDP LAN broadcast;
The remote server address supports automatic DNS domain name resolution;
-Support to view the status through AT commands;
-Lead IO4 to characterize WiFi status.
-Operating temperature range: -40℃-125℃;
-Application scenarios: smart home, wireless data collection and transparent transmission, smart car control, wireless serial printer, outdoor LED lights, industrial control, etc.



Additional information

Weight 10 g
