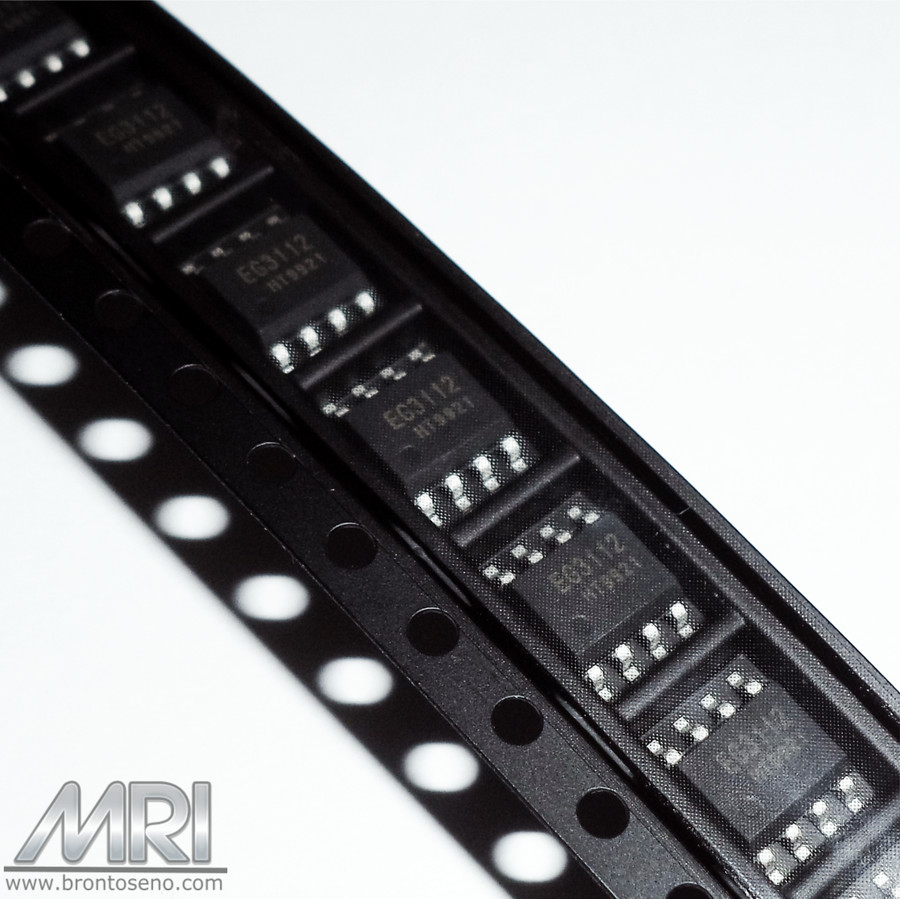

EG3112 SOP8 High Power MOS IGBT Tube Grid Drive Voltage 600V Output

Rp20.000

12 in stock

Category:

Description

High-end suspended bootstrap power supply design, withstand voltage up to 600V

Adapt to 5V, 3.3V input voltage

Maximum frequency support 500KHZ

Low-end VCC voltage range 2.8V-20V

Output current capability IO+/- 1A/1.5A

Built-in dead zone control circuit

With built-in blocking function, it can completely prevent the output of the upper and lower tubes from turning on at the same time

The HIN input channel is active high and controls the high-end HO output

The LIN input channel is active high and controls the low-end LO output

Fewer peripheral devices

Quiescent current is less than 5uA, very suitable for battery occasions

Package form: SOP-8

Application Field

Mobile power high voltage fast charging switching power supply

Inverter pump controller

600V step-down switching power supply

Electric vehicle controller

Brushless motor driver

High voltage Class-D amplifier

Harga untuk 1 pcs
