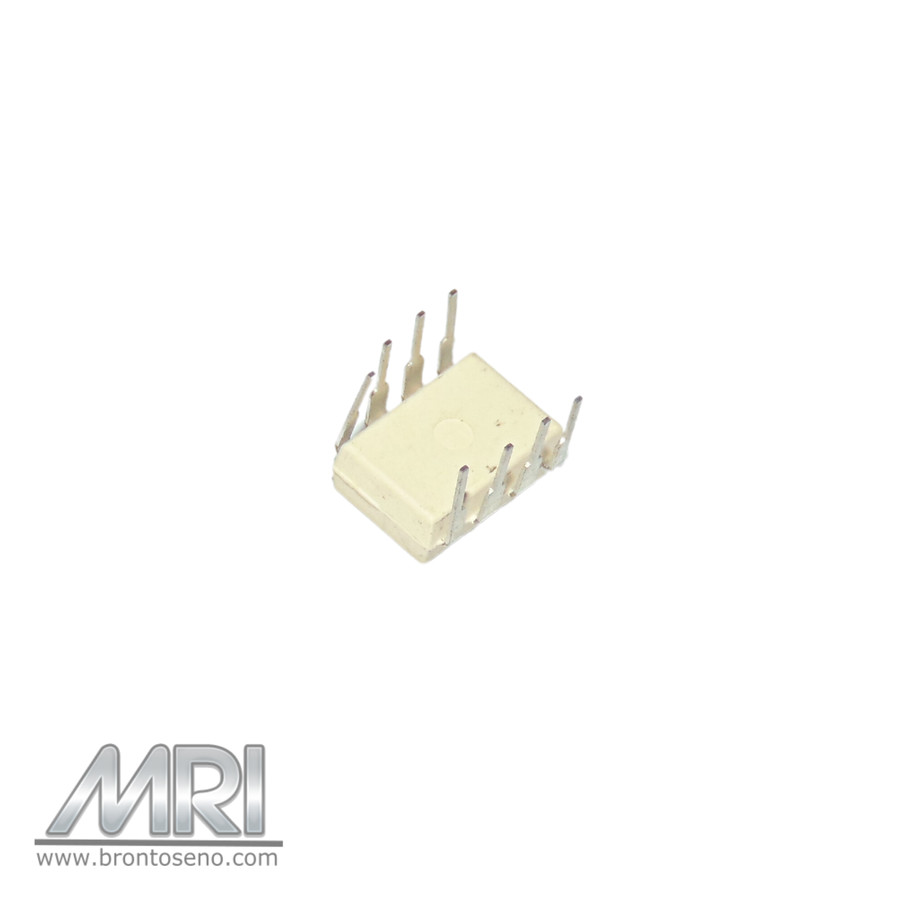

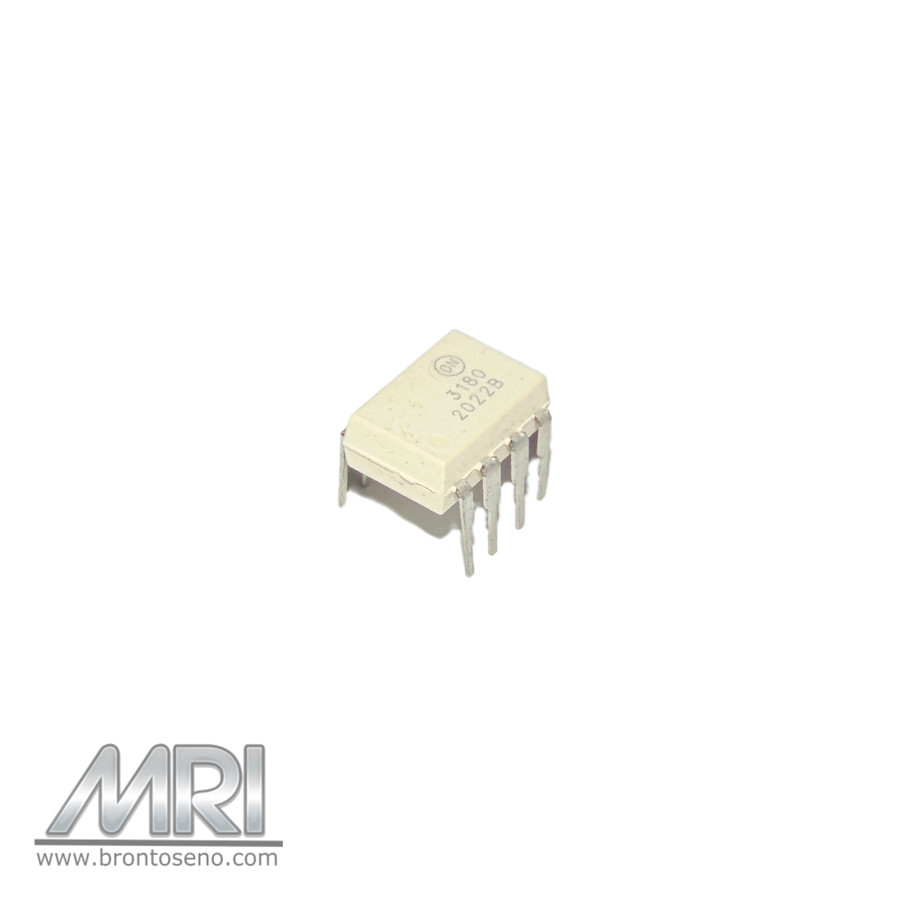

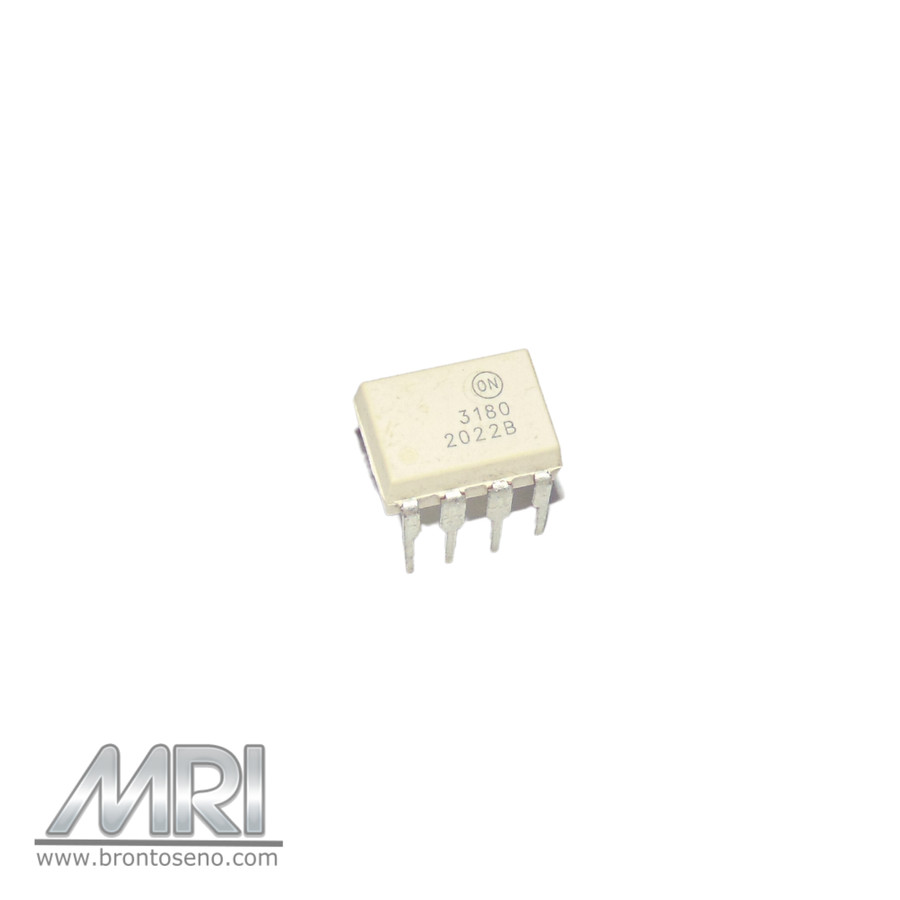

FOD3180 Optocoupler, Gate Drive Output, 1 Channel, DIP, 8 Pins, 5 kV


85 in stock



Product Overview
The FOD3180 is a 2A output current high-speed MOSFET Gate Drive Optocoupler consists of a aluminium gallium arsenide (AlGaAs) LED optically (LED) coupled to a CMOS detector with PMOS and NMOS output power transistors integrated circuit power stage. It is ideally suited for high frequency driving of power MOSFETs used in Plasma Display Panels (PDPs), motor control inverter applications and high performance DC-DC converters. The device is packaged in an 8-pin dual in-line housing compatible with 260°C reflow processes for lead free solder compliance.
2A Minimum peak output current
200ns Maximum propagation delay over temperature range
250kHz maximum switching speed
30ns typical pulse width distortion
10 to 20V Wide VCC operating range
5000Vrms for one minute Isolation
Undervoltage lockout protection (UVLO) with hysteresis
Minimum creepage distance of 7.0mm
Minimum clearance distance of 7.0mm
RDS (ON) of 1.5R (typical) offers lower power dissipation
10kV/m Minimum common mode rejection
Power Management, Motor Drive & Control, Industrial

Additional information

Weight 5 g
