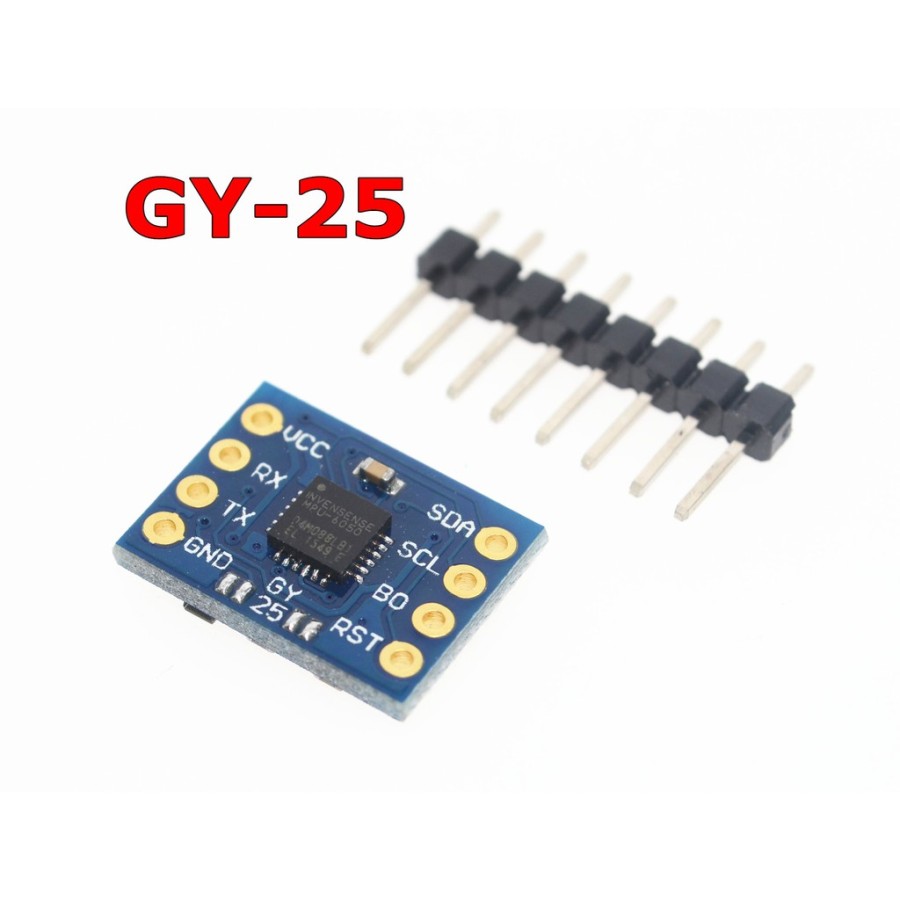

GY-25 MPU-6050 3-Axis Gyroscope Accelerometer Module Serial Output

Description

Use chip: the MCU + MPU6050
Power supply: 3-5v (internal low dropout regulator)
Communication: serial communication (baud rate 9600,115200), the IIC communication (read only raw data)
Module size: 15.5mm * 11.5mm*2.54mm
Direct Data: YAW ROLL PITCH
Heading angle ( YAW ) +- 180 [deg.]
Roll angle ( ROLL ) +- 180 [deg.]
Pitch angle ( the PITCH) +- 180 [deg.]
Angular resolution 0.01 [deg.
