Hantek 6022BE PC-Based USB Digital Storag Oscilloscope 2Channels 20MHz

Rp1.600.000

SKU: 0def255afc70 Category:

Description

Deskripsi Hantek 6022BE PC-Based USB Digital Storag Oscilloscope 2Channels 20MHzHantek 6022BE PC-Based USB Digital Storag Oscilloscope 2Channels 20MHz 48MSa/s

Technical Index:

Hantek6000BE Series

Bandwidth: 20MHz-200MHz; Sample Rate: 250MSa/s;

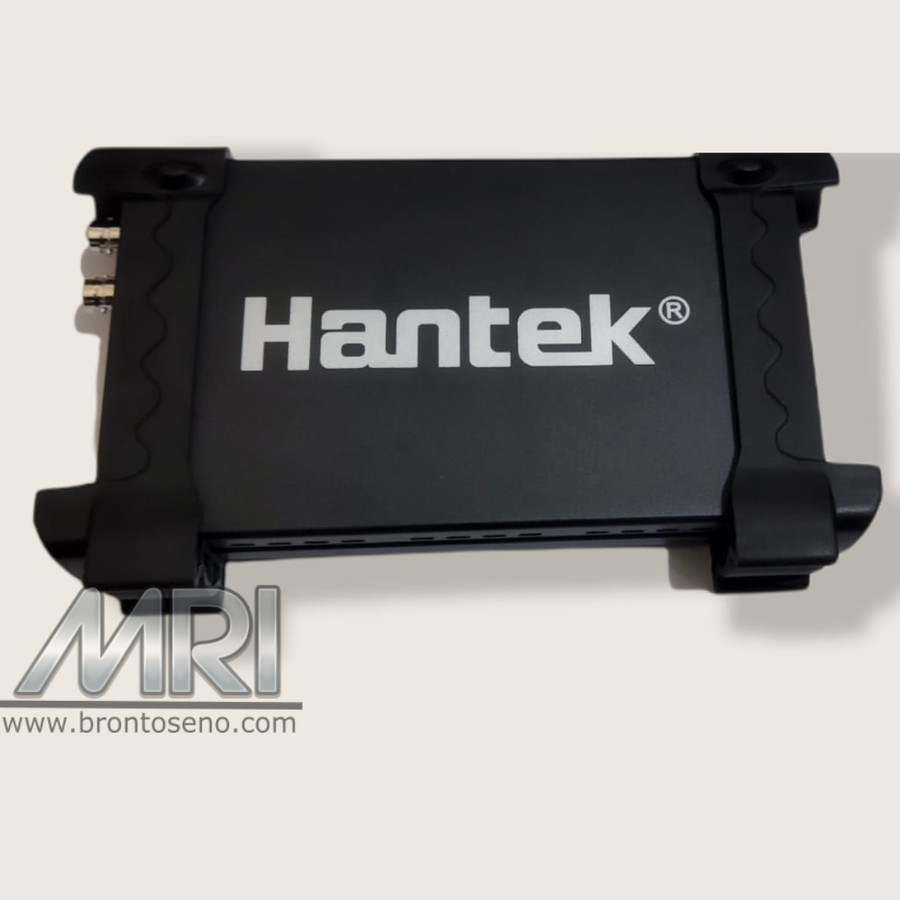

Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

Standard USBXI (TM) interface, easyly inserts into USBXI (TM) housing to make up a combination instrument.

Features

Excellent industrial design-the same anodised aluminium casing as iPad, which is not only beautiful and tasteful but also greatly enhanced the hardness of aluminum alloy surface, and has good heat resistance and strong wearability.

Standard USBXITM interface, easily inserts into USBXITM housing to make up a combination instrument.

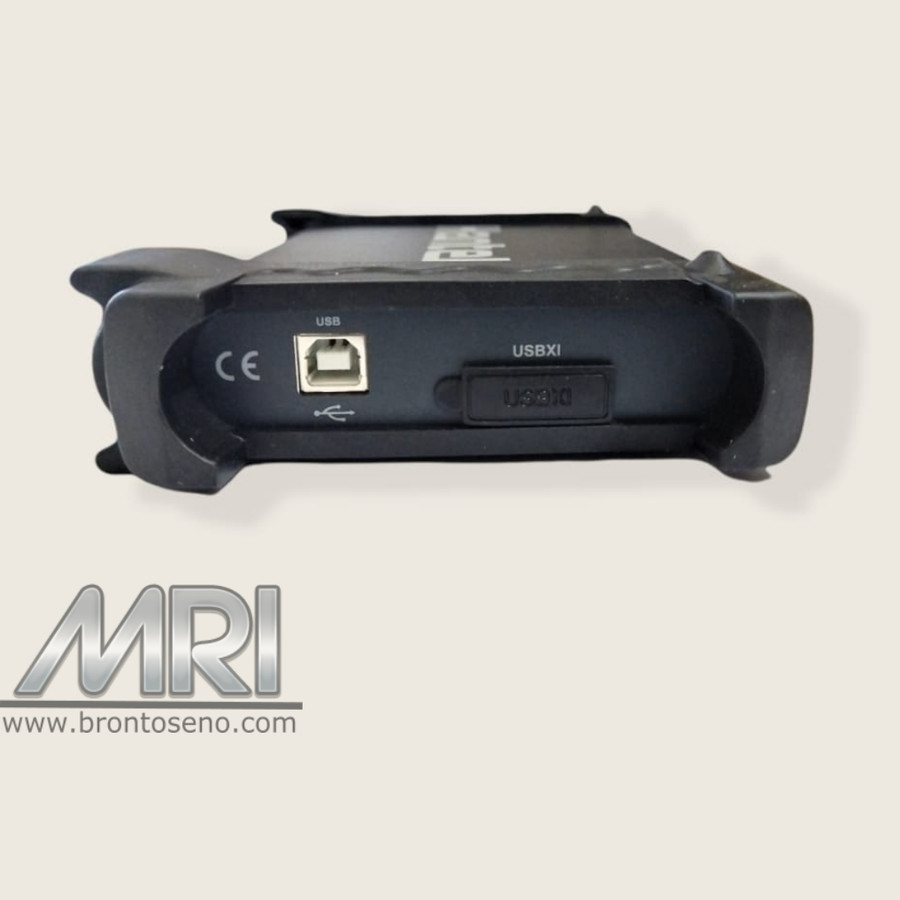

USB2.0 interface, no external power source required, easy to use.

Be suitable for notebook computer, product line maintenance, be used easily on business.

Dimensions (mm):205(L) x120(W) x35(H), be carried easily.

High performance, 250MS/s real-time sampling, 20MHz-80MHz bandwidth.

Operating System: Windows 7, Windows NT, Windows 2000, Windows XP, VISTA.

23 measurement functions, PASS/FAIL Check, be suitable for technical application.

Waveform average, persistence, intensity, invert, addition, subtraction, multiplication, division, X-Y plot.

Save waveform in the following: text file, jpg/bmp graphic file, MS excel/word file.

FFT

One computer can connect many DSO, extend channel easily.

LabviewVBVC Second Design instance.

Software

Operating system: Windows 7, Windows NT, Windows 2000, Windows XP ,VISTA

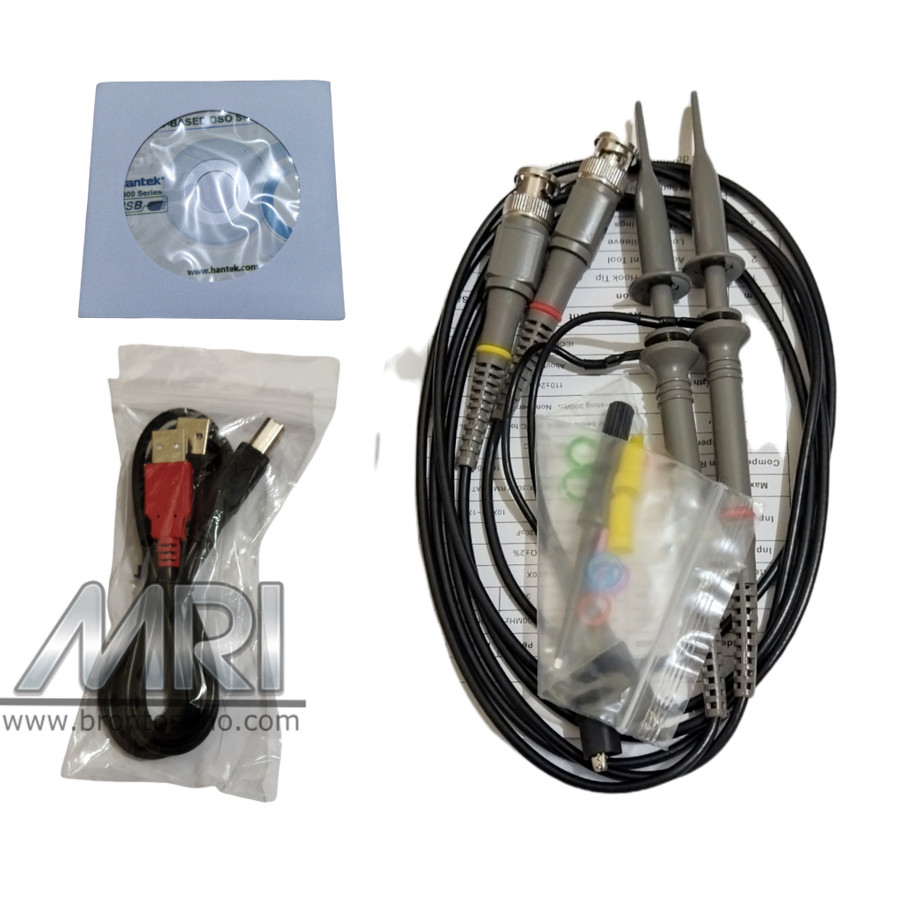

Package will include

1 x Hantek 6022BE

1 x USB cord

2 x Clip Probes

1 x User Manual

Additional information

Weight 800 g
