Description

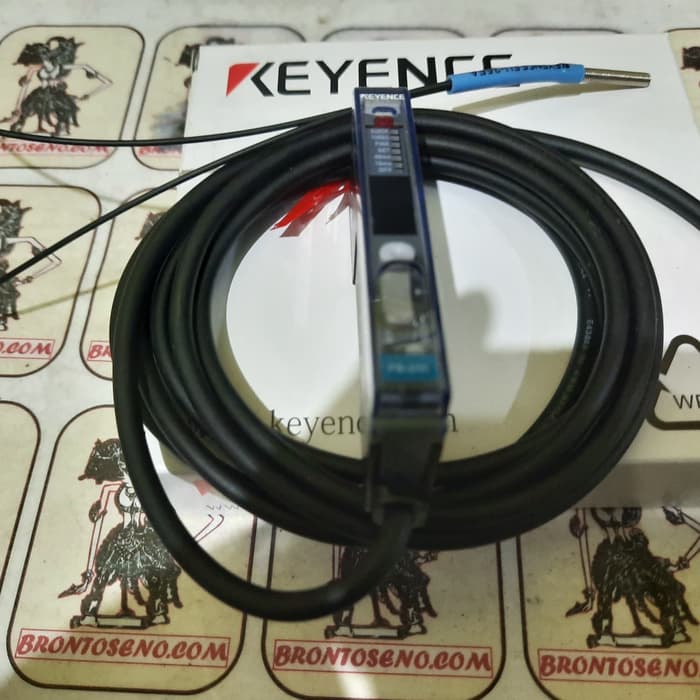

Deskripsi Keyence Fs-V11 + optic fu-35 original line sensor sumo robotCharacteristics
Sensitivity by pressing buttons on a fast automatic set / remote sense of setting; 0.5 ms following a high-speed response, external synchronization input, mutual interference protection, self diagnostic function; built in output end overcurrent protection and power reverse connection protection circuit; built-in delay function (fixed 40ms); automatic selection of light on / dark on mode, suitable for small object detection
Response time
Maximum 0.5 milliseconds (the first frequency type)
Maximum 0.5 ms (1), maximum 0.05 MS (frequency type 2)
Rated power supply
12 24VDC to 10% (P-P Ripple: Max.10%)
Current consumption
Maximum 40mA
Maximum 45mA
Using light source
Red light emitting diode (modulation)
Sensitivity
2 adjusting device (coarse, fine)
Automatic adjustment
Action mode
ON Dark and ON Light are selected by the control line
Automatically set ON Light and ON Dark
Control output
NPN universal: output – > Load Voltage: 30V, maximum load current:.200mA, voltage:.1V maximum residue
Protection circuit
Reverse polarity protection, short circuit protection
Indicator light
Action indicator: red LED
STAB: target in the stable detection area when the green indicator light, when the output: red light
Connect
Cable connection
Insulation resistance
20M Min (500VDC)
Anti-interference
Line 240V at pulse band 1US of noise simulation power
Voltage resistance
50/60Hz 1000VAC a minute
Anti vibration
10 55Hz 1.5mm (cycle per minute) complex amplitude X to, Y, Z in the direction of 2 hours
Impact resistance
500M/S2 (50G) X, Y, Z 3 times in all directions
Environmental illumination
Solar light: 11000 Lux.Max., fluorescent lamp: 3000 Max. Lux.
Ambient temperature
Use: to +60 -10 (not frozen)
Storage: to +70 -25 (not frozen)
Ambient humidity
Use: 35 to 85% RH
Storage: 35 to 85% RH
Material Science
Shell: ABS,
Shell:
Cable
4P, diameter 5mm, length: 2m
