Load Cell 5kg Sensor berat tekanan timbangan hx 711 loadcell Arduino

Rp45.000

20 in stock

SKU: #345 Category:

Description

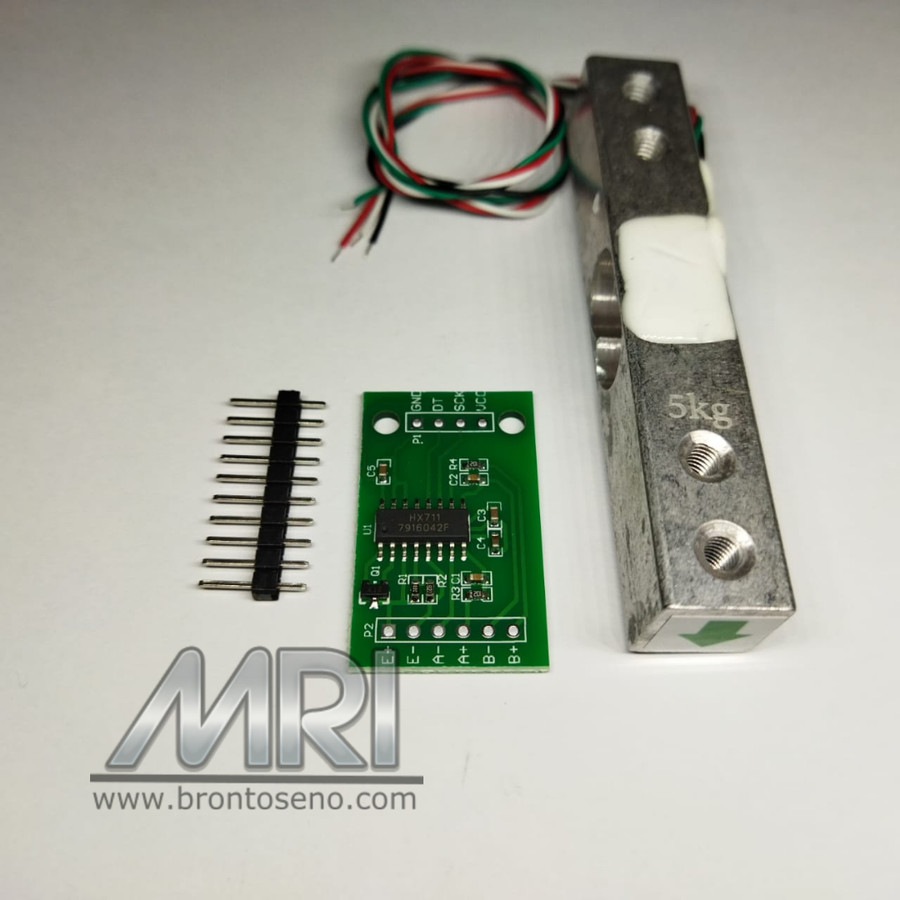

HX711 + Load Cell 5 kg – Loadcell 5kg – Sensor Berat – Weight

Spesifikasi:
=================================
– Rated Load: 5Kg
– Rated Output: 1.0mV/V±0.15mV/V
– Zero Output: ±0.1mV/V
– Creep: 0.03%F.S./30min
– Input End: Red+(power), Black-(power)
– Output End: Blue/Green+(signal), White-(signal)
– Recommended operating voltage: 3 ~ 12 VDC
– Maximum operating voltage: 15 VDC
– Input Impedance: 1115±10%Ω
– Output Impedance: 1000±10%Ω
– Protection class: IP65
– Total Size: 2,95 x 0.5 x 0.5 inch (12.7mm x 12.7mm x 75mm)
– Cable: φ0.8×20 cm
– Material: Aluminum Alloy
– Wiring: (Red: Power+) (Black: Power-) (Green: Signal+) (White: Signal-)
