Magnetic Encoder Breakout Board |14-Bit On-Axis Absolute Rotary


SKU: #473 Category:


Magnetic Encoder Breakout Board |14-Bit On-Axis Absolute Rotary Position Sensor with 12-Bit Binary and Decimal Incremental Pulse-Count

NCoder5047 is a high-resolution rotary position sensor for high speed (up to 28krpm) angle measurement over a full 360 degree range.
Good resolution for motion and position with versatile choice of interface with independent output interfaces such as SPI and ABI. By default NCoder5047 is in ABI interface with 4000 CPR or 1000 PPR resolution (Quadrature Encoder with Index).
The resolution(steps per revolution/CPR) of Incremental Encoder can be configured as 4000, 2000, 1600, 1200, 800, 400, 200, 100 in decimal mode and 4096, 2048, 1024 in binary mode using a standard 4-wire SPI serial interface.
14-bit resolution absolute angle data can be obtained by microcontroller through SPI Serial Interface.

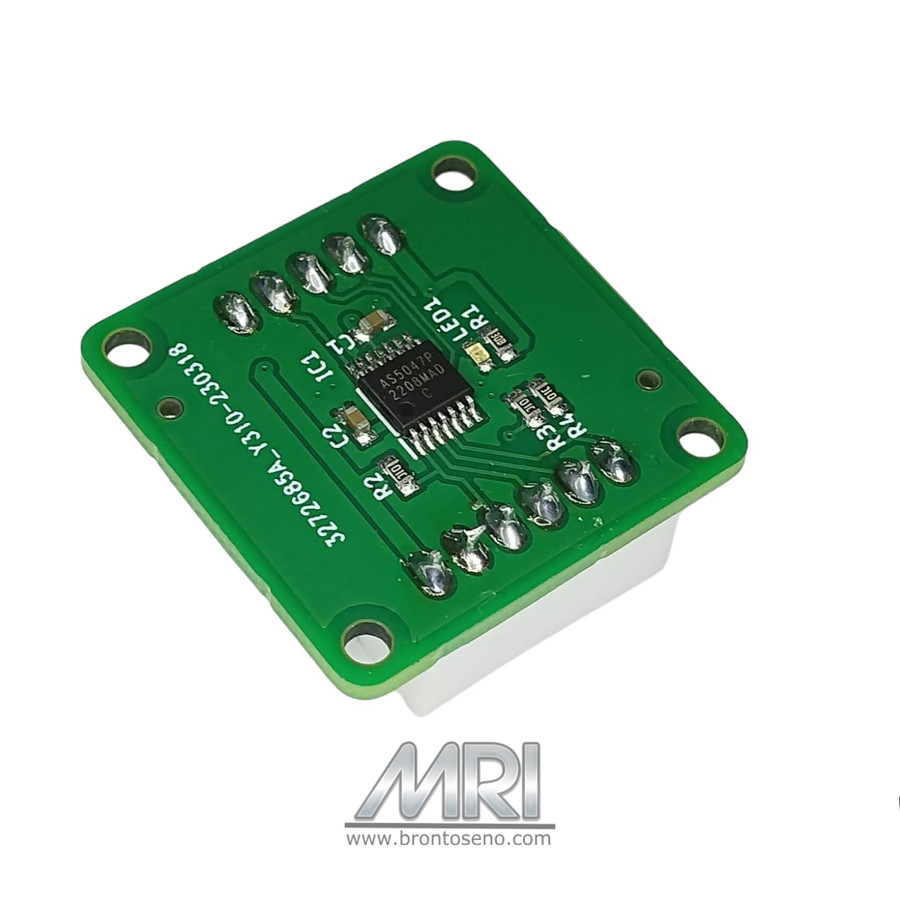

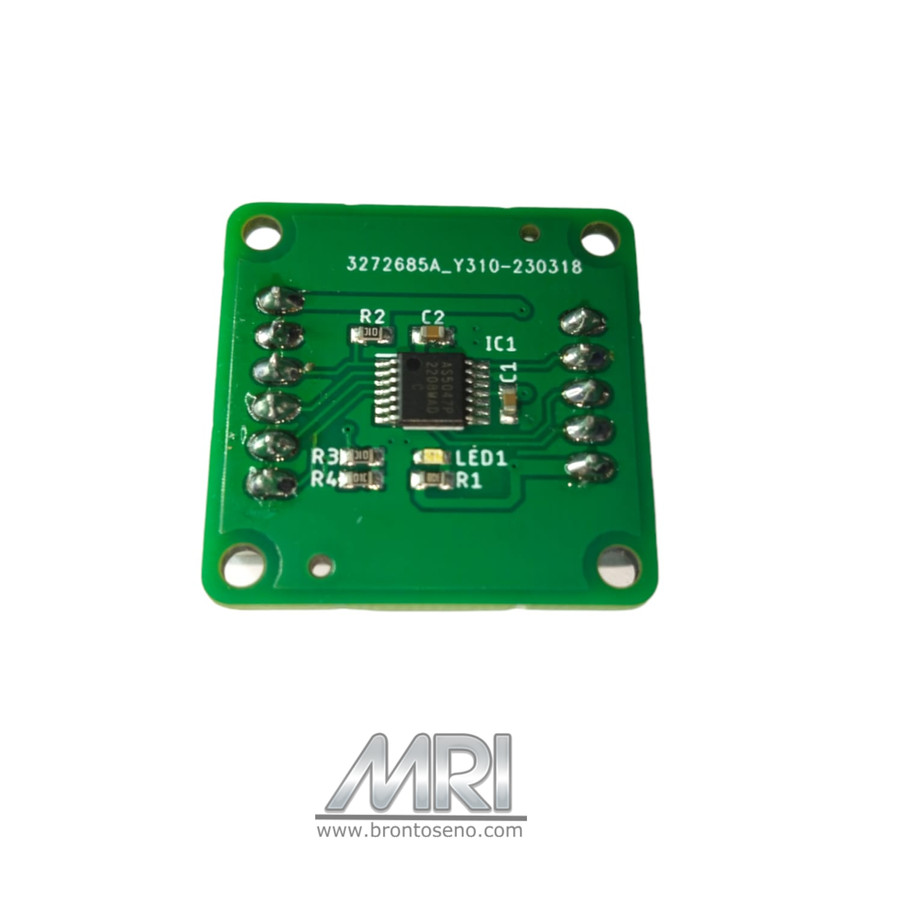

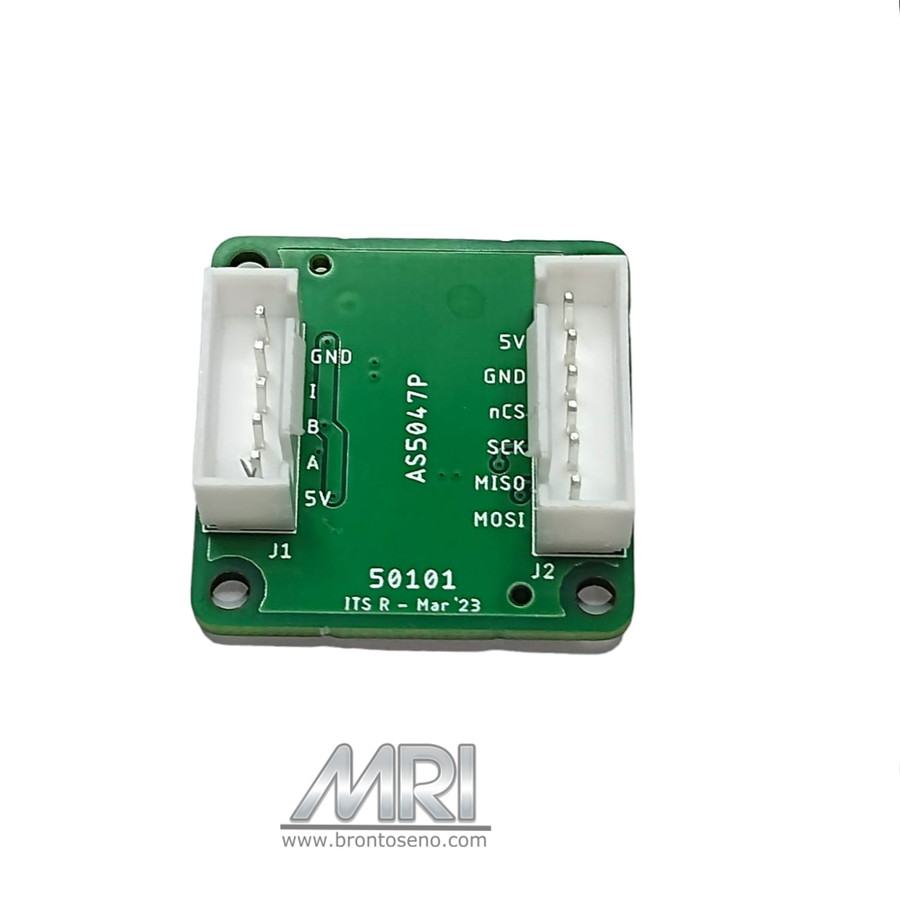

The kit contains 1 NCoder5047(Breakout Board for AS5047P Magnetic Encoder), 1 Diametric Magnet D6x2.5 mm NdFeb and 2.54mm 1×12 Berg Strip Male Connector.
