Max7219 Led Matrix Module 8×8 / 8*8

Rp18.000

95 in stock

SKU: #874 Category: Tag:

Description

Description :
– Single module can drive an 8*8 dot matrix common cathode(1088as) / common anode(1088bs)
– Module Operating voltage: 5V
– Module dimensions : length 3.2 cm X 3.2 cm wide X 1.3 cm high
– Holes with four screws, diameter 3mm
– Modules with input and output interfaces, support for cascading multiple modules

Wiring instructions :
– On the left block to an input port, an output port on the right.
– When the control of a single module, simply enter the port received a CPU
– When more than 3 modules cascaded output input termination CPU, the input output termination module of the first two modules of the first one, the first two modules of the termination input terminal of the three modules, and so on

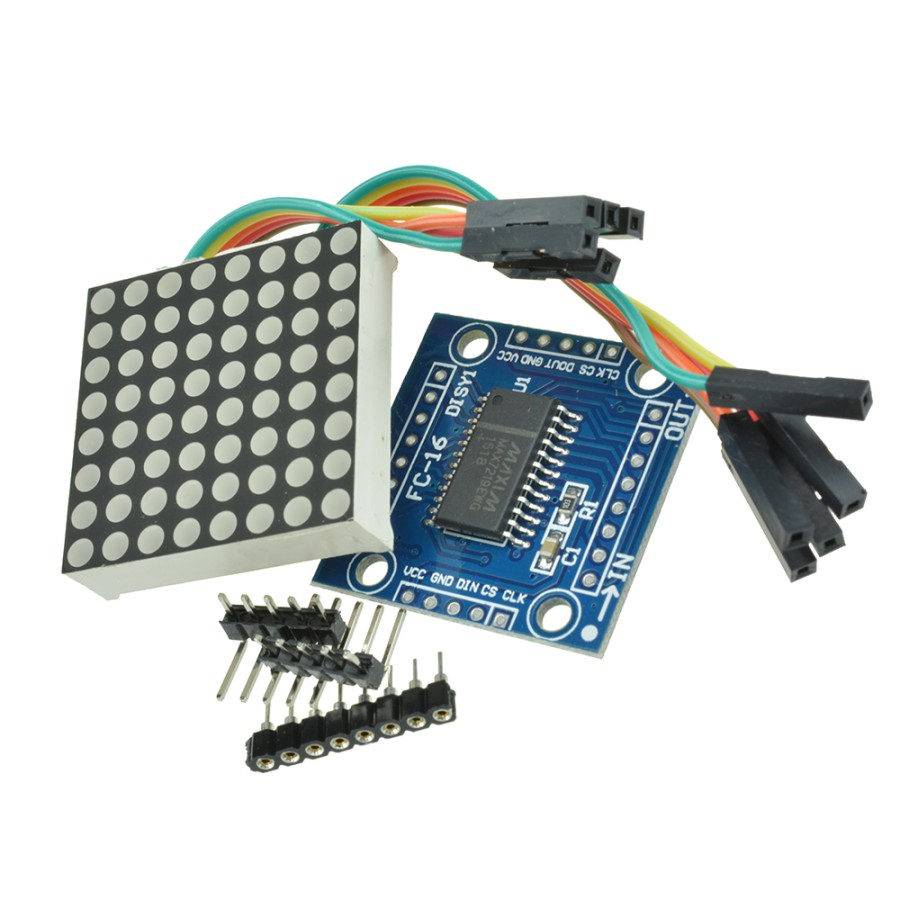

Package includes :
1x PCB Board
1x 8*8 Dot Matrix
2x 5P Bent Single Pin
2x 8P Round Hole Board

Referensi MAX7219-Module :
http://tronixstuffcom/2013/10/11/tutorial-ardu…
http://parolacodeplexcom/
