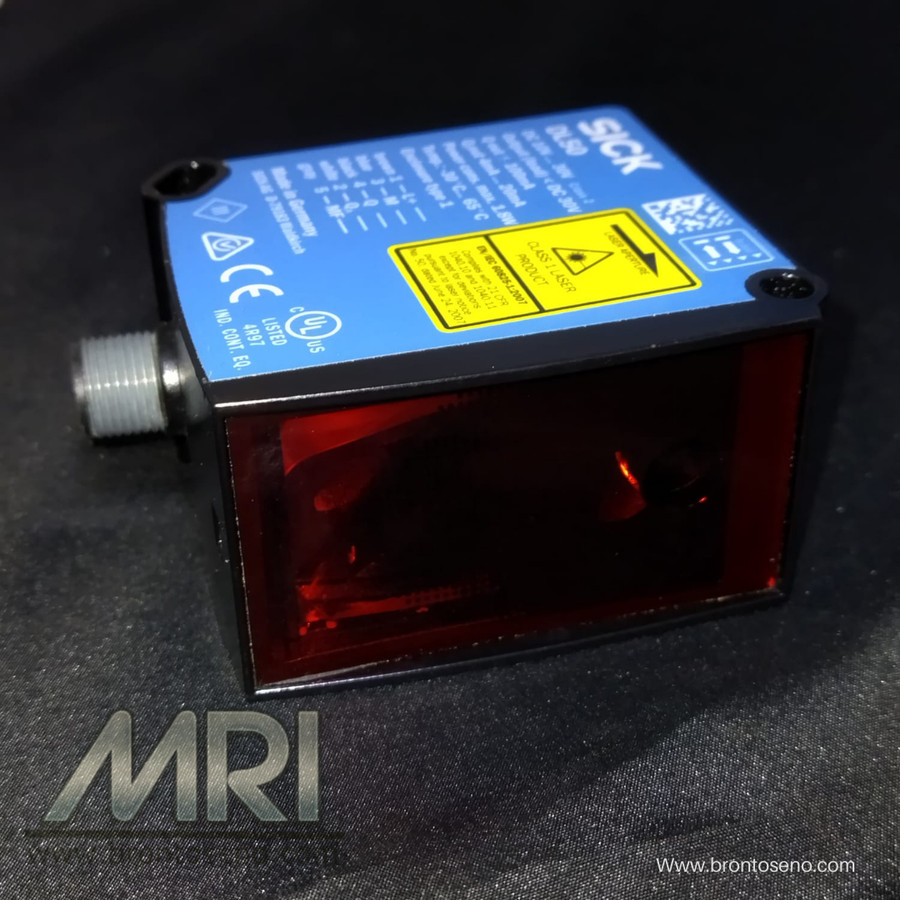

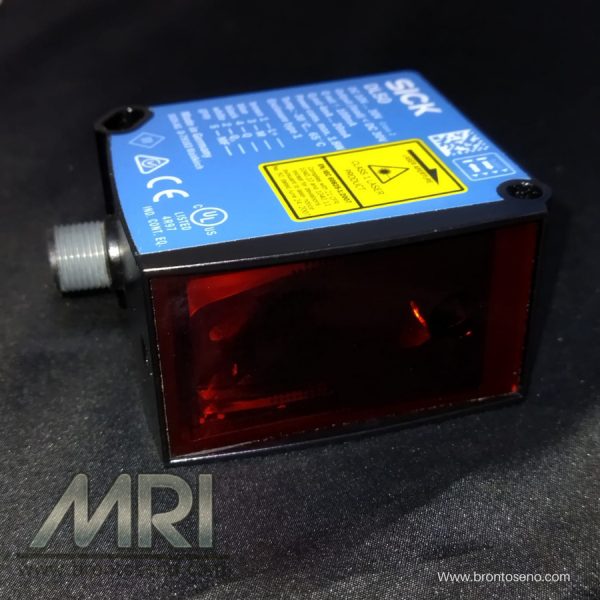

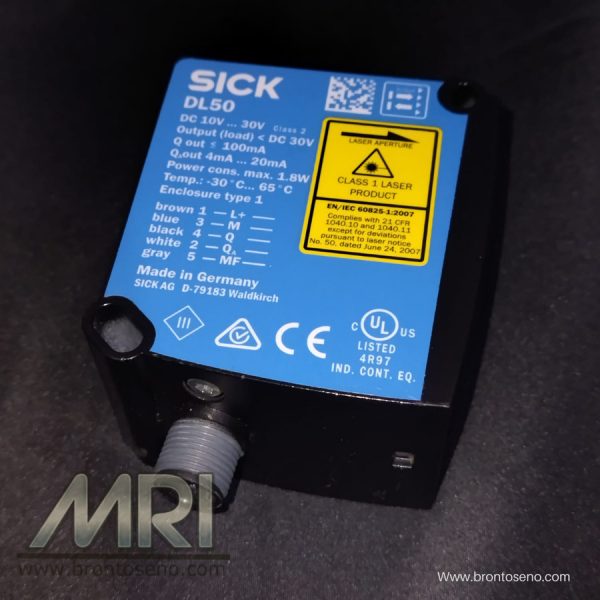

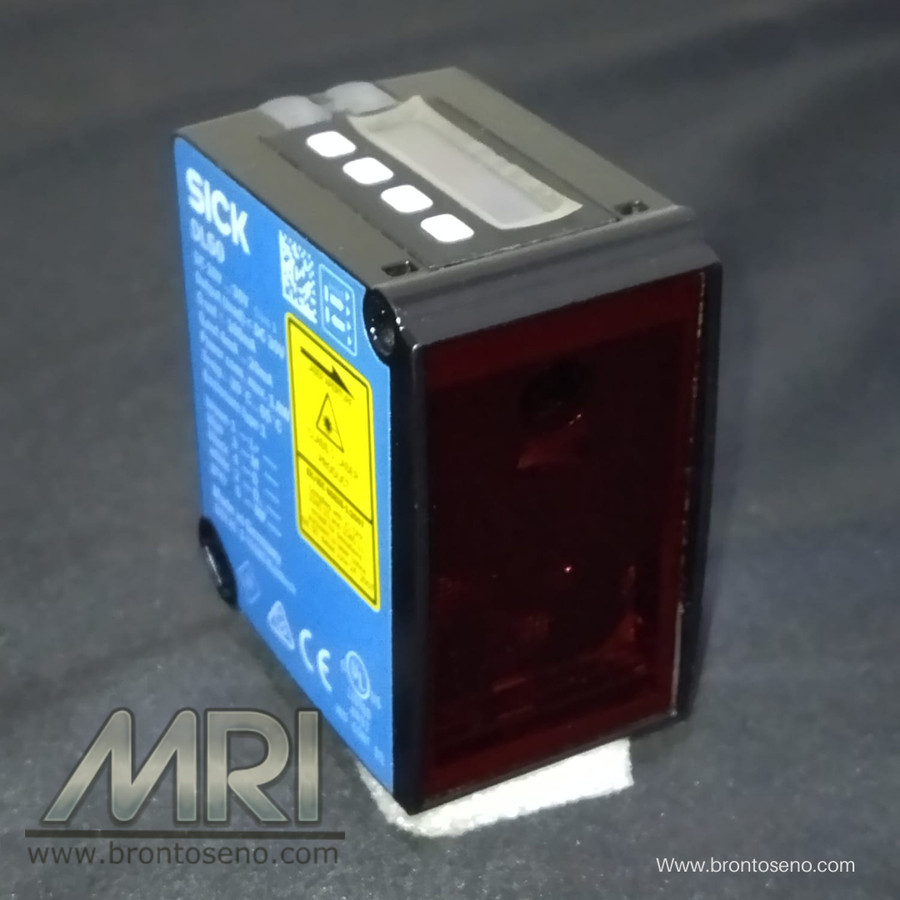

Mid range Reflection distance sensors DL50 – P1123 diamond marking

Supply voltage Vs DC 10 V … 30 V 1)
Ripple ≤ 5 Vpp 2)
Power consumption ≤ 2.1 W 3)
Initialization time ≤ 250 ms
Warm-up time ≤ 15 min
Housing material Metal (zinc diecast)
Window material Plastic (PMMA)
Connection type Male connector, M12, 5-pin

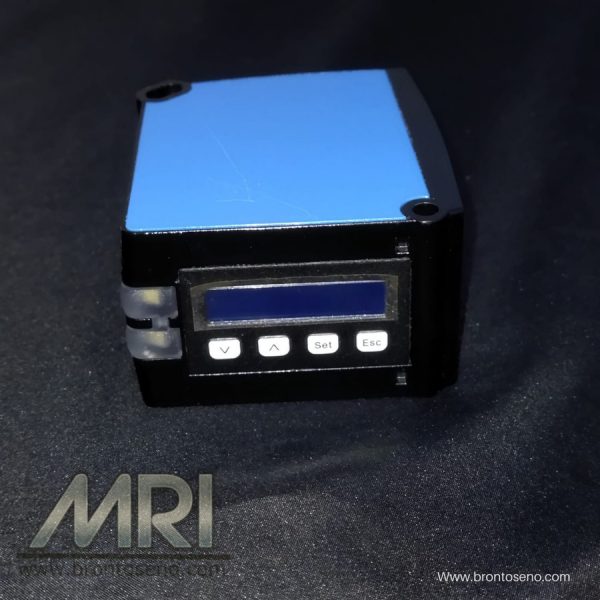

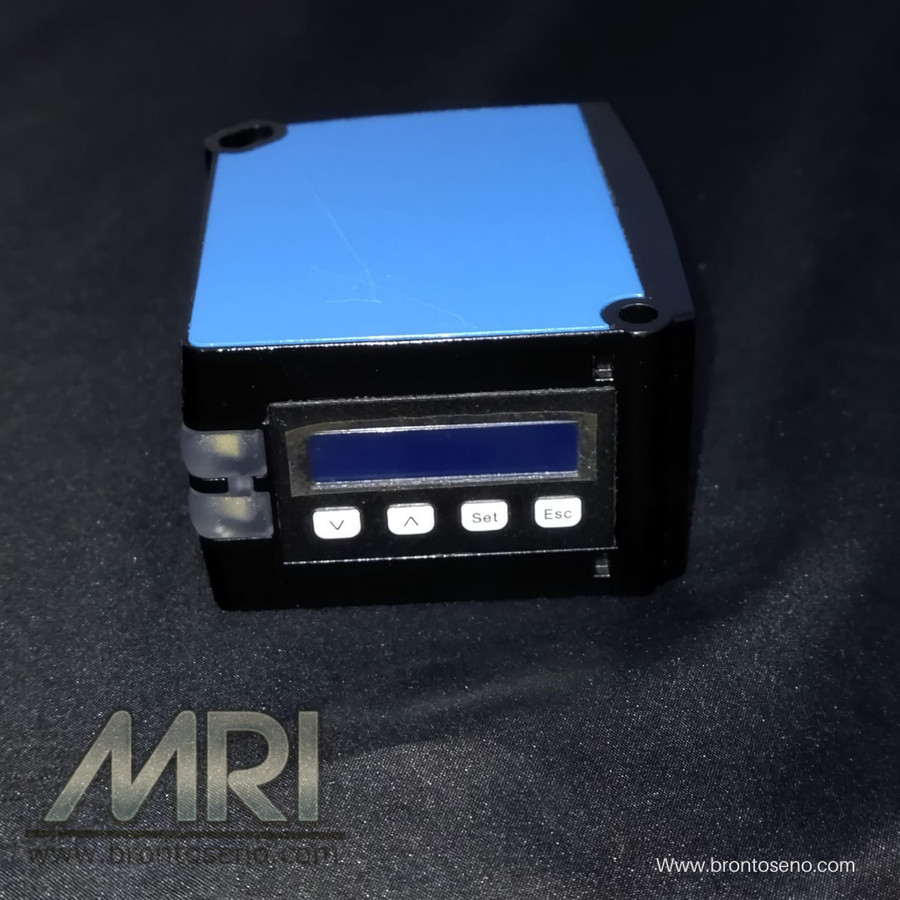

Indication LC display, 2 x LED
Weight 200 g
Dimensions (W x H x D) 36.1 mm x 62.7 mm x 57.7 mm
Enclosure rating IP65
Protection class III

Measuring range 200 mm … 50,000 mm, on “diamond grade” reflective tape 1)
Target Reflector
Resolution 1 mm
Repeatability ≥ 2 mm 2) 3)
Accuracy ± 7 mm
Response time 15 ms … 30 ms, 15 ms / 30 ms 3) 4)
Output time ≥ 4 ms 5)
Light source Laser, red
visible red light
Laser class 1 (IEC 60825-1:2014, EN 60825-1:2014) 6)
Typ. light spot size (distance) 15 mm x 15 mm (10 m)
Additional function Set moving average: fast/slow, switching mode: distance to object (DtO), teach-in, scaling and inversion of digital output, set hysteresis, teach-in, scaling and inversion of analog output, Multifunctional input: laser off / external teach / deactivated, switch-off display, reset to factory default, lock user interface
Average laser service life (at 25 °C) 100,000 h
