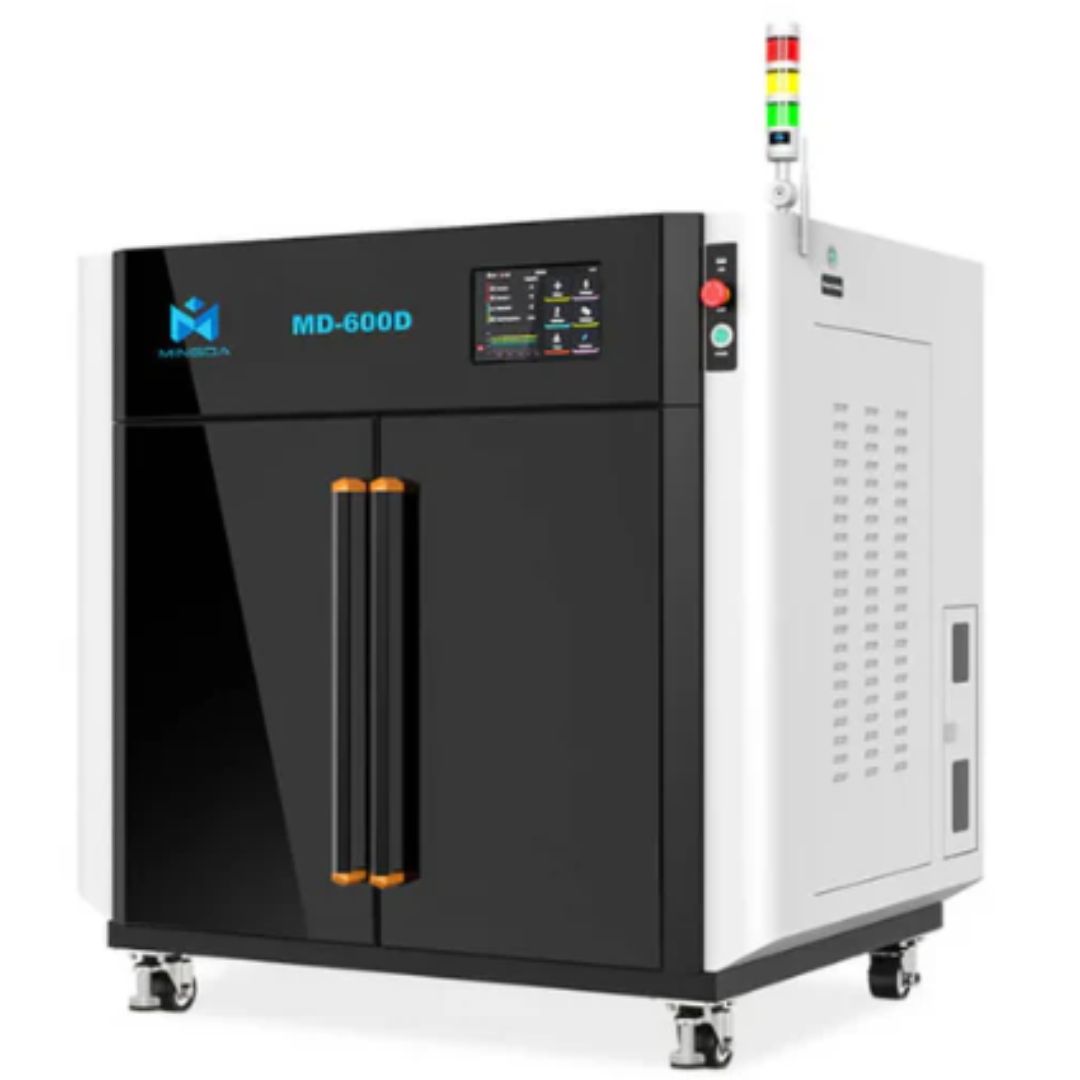

MINGDA Industrial large 3D Priner MD-600D

3D Printer Technical Specifications

• Build Volume (L × W × H): 600 × 600 × 600 mm
• Physical Dimensions: 130 × 97 × 126 cm
• Packing Size: 138 × 104 × 143 cm
• Net/Gross Weight: 215 kg / 250 kg

Technology & Performance

• Printing Technology: FDM (Fused Deposition Modeling)
• Number of Extruders: 2
• Leveling: Quick Auto-Leveling
• Layer Thickness: 0.05 – 0.3 mm
• Printing Accuracy:
  • X/Y Axis: 0.01 mm
  • Z Axis: 0.002 mm
• Printing Speed:
  • Recommended: 200 – 300 mm/s
  • Max Travel Speed: 500 mm/s

Connectivity & Control

• Connectivity: USB / WiFi
• Display & Controller: 7-inch HDMI Touchscreen

Extruder & Platform

• Nozzle Diameter:
  • Standard: 0.4 mm
  • Optional: 0.6 mm, 0.8 mm, 1.0 mm
• Max Platform Temperature: 110°C
• Max Nozzle Temperature: 350°C

Supported Materials

• Standard Filaments: PLA, TPU, PETG
• Engineering Filaments:
  • PET-CF/GF, HtPA-CF/GF
  • PA-CF/GF, PA-CF25/GF25, PA12-CF
  • ABS-CF20, ABS-GF25, and more
• Support Filaments: S-Mulit, S-HtPA, PVA
• Filament Diameter: 1.75 mm
