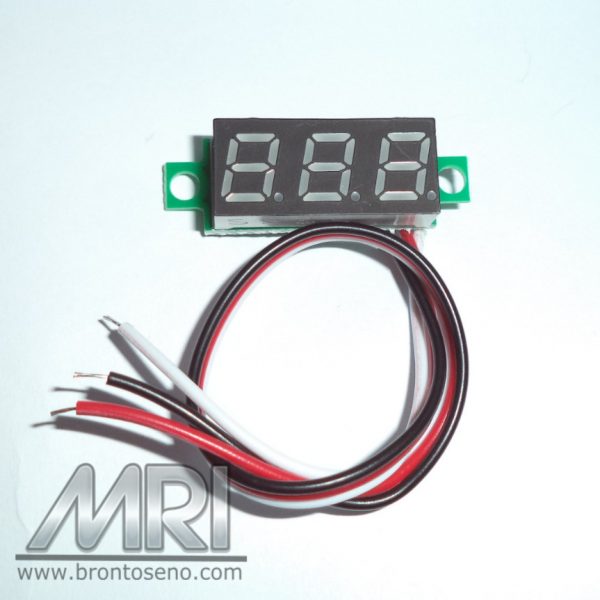

Mini DC Digital Panel Voltmeter Panel Mount LED Voltage Meter Tester

Rp15.000

SKU: da11e12160ec Category:

Description

Deskripsi Mini DC Digital Panel Voltmeter Panel Mount LED Voltage Meter TesterWeight : 4g

Display color: GREEN BLUE RED YELLOW

Display mode: Three 0.28 LED digital tube

update rate: About 500 ms/time

Physical size: 30 x 12 x 8.5 mm (L*W* H, including installation ear)

Power supply: Don’t need the power supply, direct use of the test voltage as a power supply

Lead wire length: 10 cm

The minimum input: 3.50V

The maximum input: 30V

Measurement range: DC3.50 – 30V

Operation temperature: -10 degrees~65 degrees

Measurement accuracy: ± (1% + 2 Digit)

Mounting holes distance: 26mm

Red line:Power Supply +,Measure Voltage +,(3.50-30V DC)

Black line:Power Supply -, Measure Voltage-

Package include:

1 * GREEN/BLUE/RED/YELLOW Mini 0.28 inch 0.28” 3 bits DC 0-100v Digital LED Display Panel Voltage Meter Voltmeter tester

Additional information

Weight 5 g
