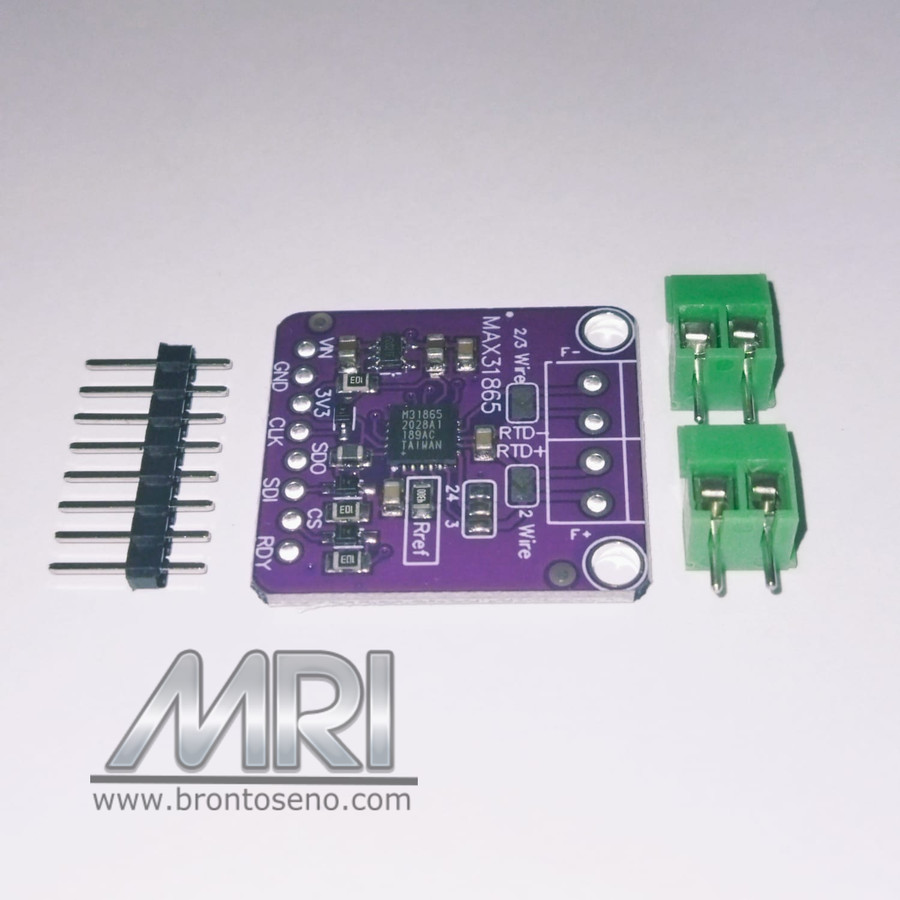

Modul MAX31865 Temperature PT100 PT1000 Sensor RTD to SPI

Description

Deskripsi Modul MAX31865 Temperature PT100 PT1000 Sensor RTD to SPI
Aplikasi : arduino, raspberry pi, mcu, stm

1. Simple Conversion of Platinum RTD Resistance to Digital Value
2. Handles 100 to 1k (at 0C) Platinum RTDs (PT100 to PT1000)
3. Compatible with 2-, 3-, and 4-wire Sensor Connections
4. Conversion Time: 21ms max
5. 15-Bit ADC Resolution;
6. Nominal Temperature Resolution 0.03125NC (Varies Due to RTD Nonarity)
7. Total Accuracy Over All Operating Conditions: 0.5NC (0.05% of Full Scale) max

Package Included
– MAX31856 module x 1

Tutorial
http://https ://learn.adafruit.com/adafruit-max31865-rtd-pt100-amplifier?view=all
