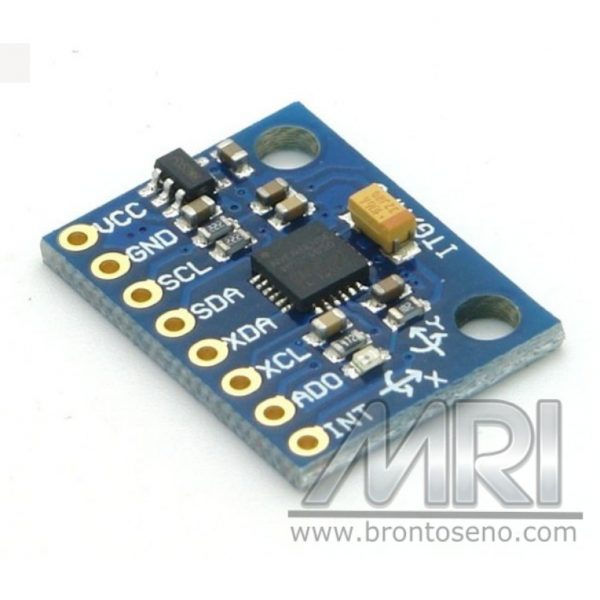

MPU6050 MPU-6050 3 AXIS ANALOG GYROSCOPE ACCELEROMETER MODULE

This board includes a MPU-6050 6-Axis Motion Processing Unit, a 2.5V voltage regulator, and the logic level converter circuit to makes it work under the power of 3V-5V. Based on its I2C communication protocol, you can use very few wires to connect it with a 3V-5V MCU directly.

The MPU-6050 sensor contains a MEMS accelerometer and a MEMS gyro in a single chip. It is very accurate, since it contains 16-bits analog to digital conversion hardware for each channel. Therefor it captures the x, y, and z channel at the same time.

Electronic Feature :

Name: MPU-6050 module (three-axis gyroscope + triaxial accelerometer)

1Chip: MPU-6050

2Power supply: 3V-5V power(internal low dropout regulator)

3Gyroscope range: + 250 500 1000 2000 / s

4Acceleration range: 2 4 8 16 g

5Communication Mode: standard IIC communication protocol

6Chip built-in 16 bit AD converter, 16 bits data output

7Pin pitch 2.54 mm

8Size: 20.3mm x 15.6mm

9Immersion Gold PCB, machine welding process to ensure quality

Application :

– Motion sensing game

– Augmented Reality

– Electronic Image Stabilization (EIS: Electronic Image Stabilization)

– Optical image stabilization (OIS: Optical Image Stabilization)

– Pedestrian Navigator

– Zero-touch gesture user interface

– The postures quick way
