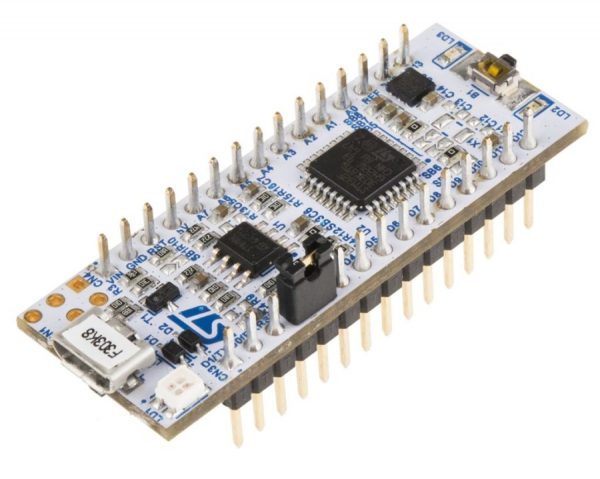

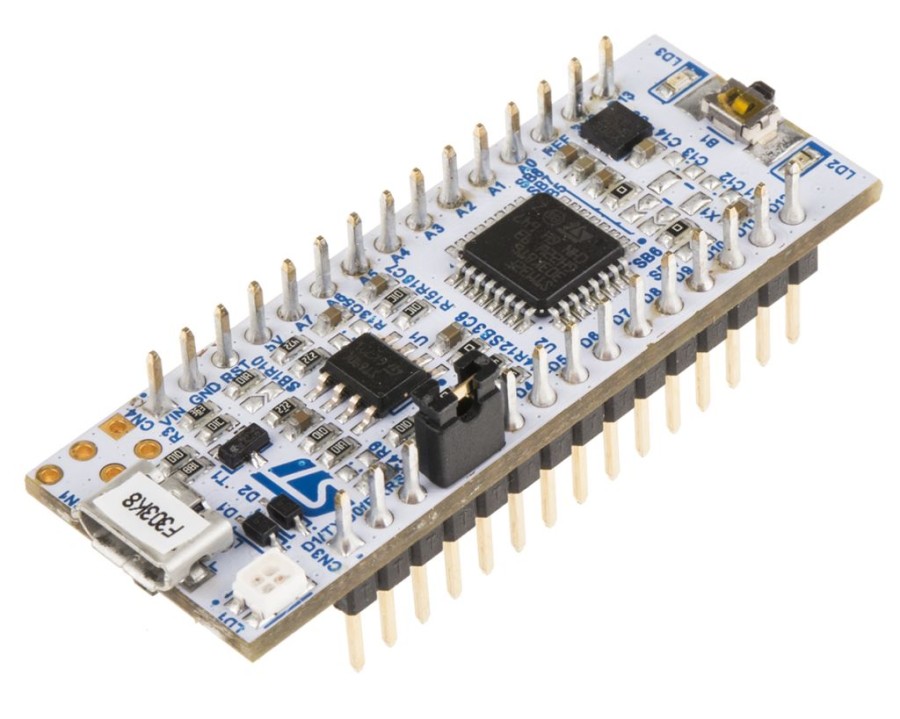

NUCLEO-F303K8 Development Board Arduino nano extension


5 in stock



Product Overview
The NUCLEO-F303K8 is a STM32 Nucleo-32 Development Board with STM32F303K8 microcontroller provides a flexible way for users to try out new concepts and build prototypes with the STM32 microcontroller, choosing from the various combinations of performance, power consumption and features. The Arduino™ nano connectivity makes it easy to expand the functionality of the STM32 Nucleo open development platform with a choice of specialized shields. The board does not require any separate probe as it integrates the ST-LINK/V2-1 debugger/programmer and it comes with the STM32 comprehensive software HAL library, together with various packaged software examples, as well as direct access to the ARM®mbed™on-line resources.

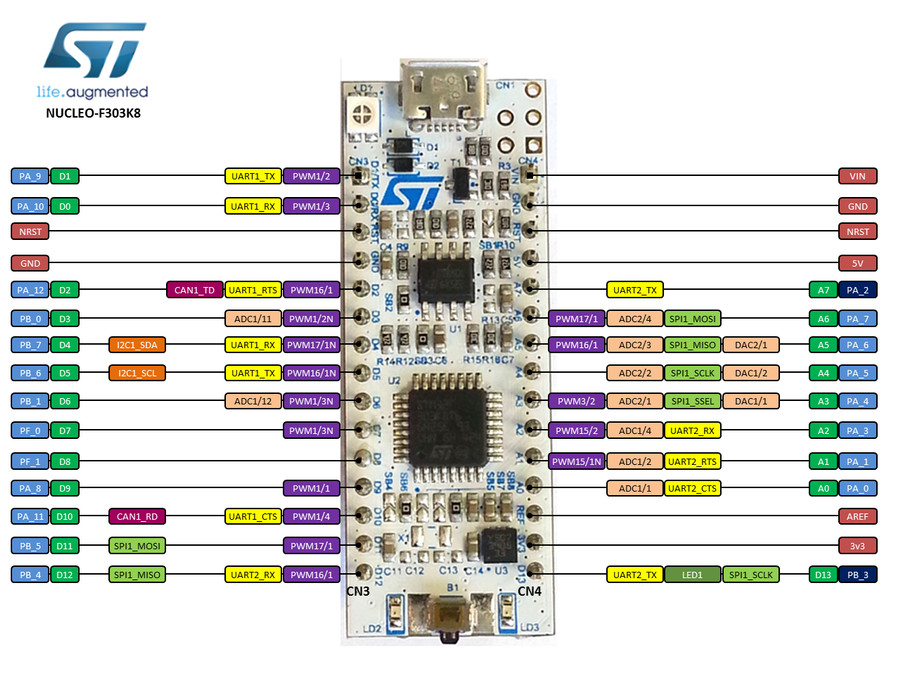

Extension with Arduino™ nano connectivity
On-board ST-LINK/V2-1 debugger/programmer with SWD connector – USB VBUS, external source
USB communication (LD1), power LED (LD2), user LED (LD3)
Reset push-button
Supported by wide choice of IDEs including IAR™ , Keil®, GCC-based IDEs (AC6 SW4STM32)
Test & Measurement, Industrial


Additional information

Weight 55 g
