Description
Hardware specification

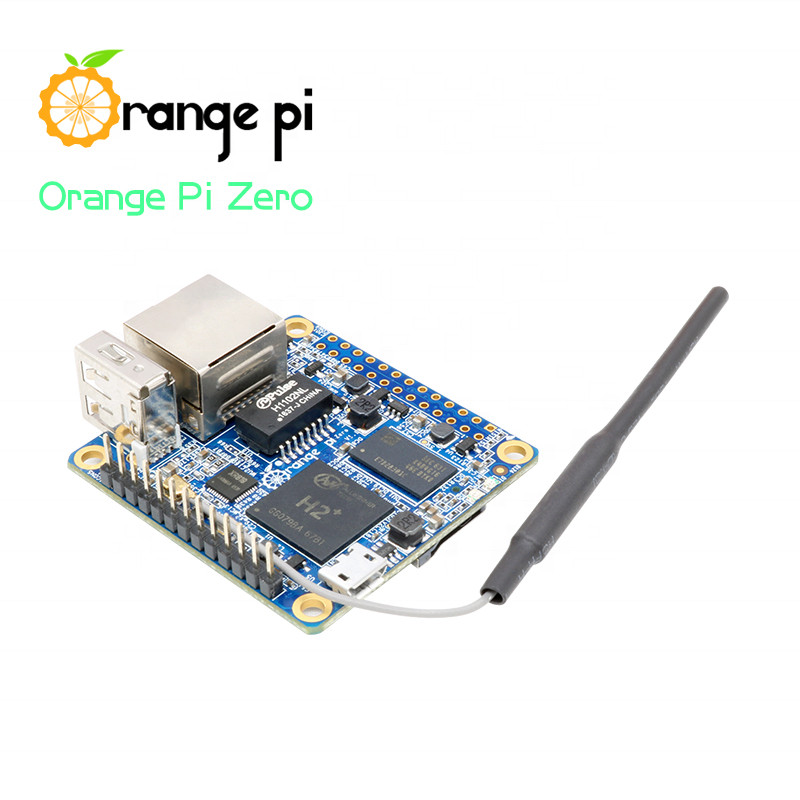

CPU : H2 Quad-core Cortex-A7 H.265/HEVC 1080P.
GPU :
·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0
Memory (SDRAM) : 512MB DDR3 SDRAM(Share with GPU)
Onboard Storage : TF card (Max. 32GB)/ Spi Flash
Onboard Network : 10/100M Ethernet RJ45 POE is default off.
Onboard WIFI : XR819, IEEE 802.11 b/g/n
Audio Input : MIC
Video Outputs : Supports external board via 13pins
Power Source : USB OTG can supply power
USB 2.0 Ports : Only One USB 2.0 HOST, one USB 2.0 OTG
Buttons : Power Button
Low-level peripherals :
26 Pins Header, compatible with Raspberry Pi B+
13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV)
LED :Power led & Status led
Supported OS : Android, Lubuntu, Debian, Raspbian
CPU : H2 Quad-core Cortex-A7 H.265/HEVC 1080P.
GPU :
·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0
Memory (SDRAM) : 512MB DDR3 SDRAM(Share with GPU)
Onboard Storage : TF card (Max. 32GB)/ Spi Flash
Onboard Network : 10/100M Ethernet RJ45 POE is default off.
Onboard WIFI : XR819, IEEE 802.11 b/g/n
Audio Input : MIC
Video Outputs : Supports external board via 13pins
Power Source : USB OTG can supply power
USB 2.0 Ports : Only One USB 2.0 HOST, one USB 2.0 OTG
Buttons : Power Button
Low-level peripherals :
26 Pins Header, compatible with Raspberry Pi B+
13 Pins Header, with 2x USB, IR pin, AUDIO(MIC, AV)
LED :Power led & Status led
Supported OS : Android, Lubuntu, Debian, Raspbian
Interface definition
Product size : 48 mm × 46mm
Weight : 26g
