Description

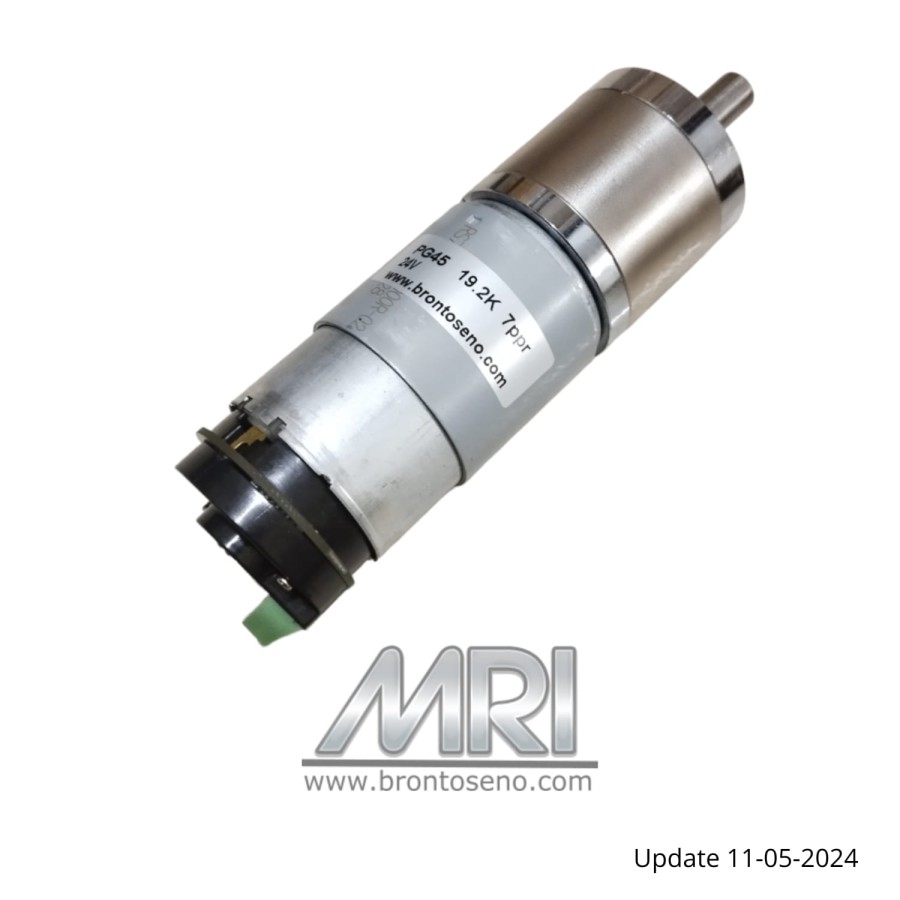

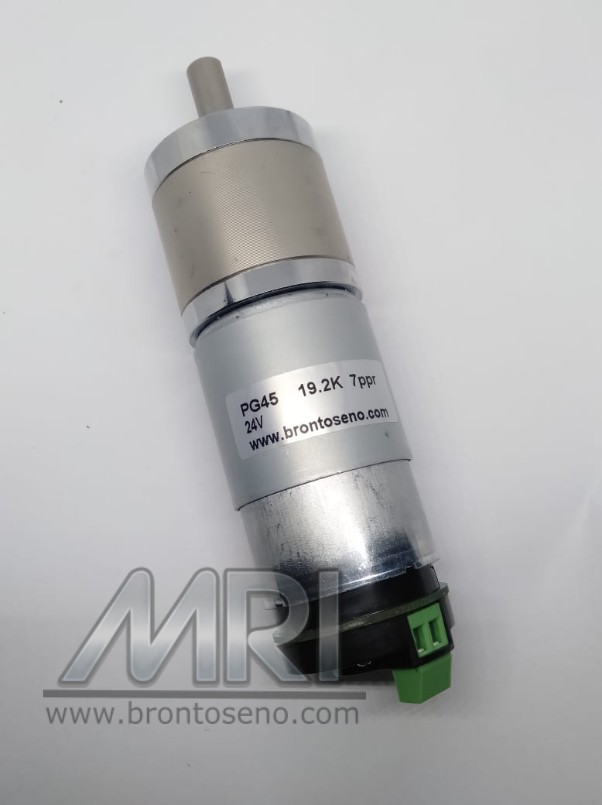

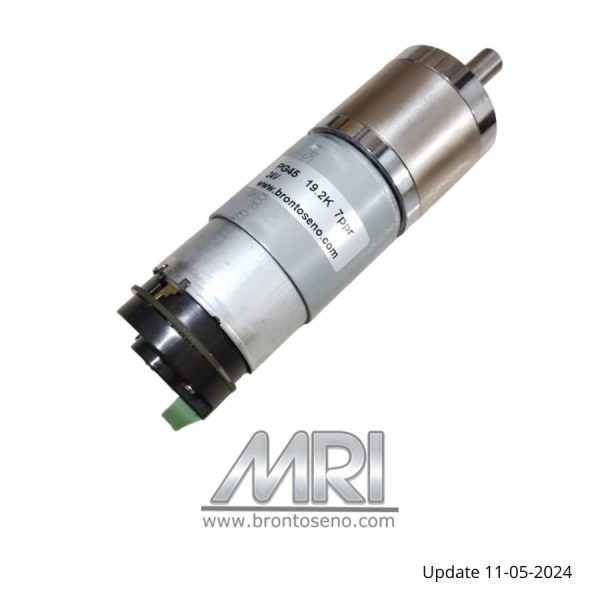

PG45 with diameter 45mm Reduction ratio 1:19.2
Diameter : 45mm
Motor Rpm 9000/19.2k = 468.75 Real (+- 500rpm Pembulatan) Speed yang keluar dari output gearbok
As motor : 10mm
Arus : 2.5A-5A
voltage 24Vdc
eff torque : +- 15kgfcm (750*19.2k)-25kgfcm
force torque : +- 25 kgfcm
Torque stall : +-30kgcm
dimensi dan ukutan
https://grabcad.com/library/pg45-dc-platet-geared-motor-1
dwonload datasheet PG45
https://drive.google.com/file/d/16RcYD02mn52z7hbxwghCWxRVRSceaHUi/view?usp=sharing
https://grabcad.com/library/motor-dc-pg45-24v-1
