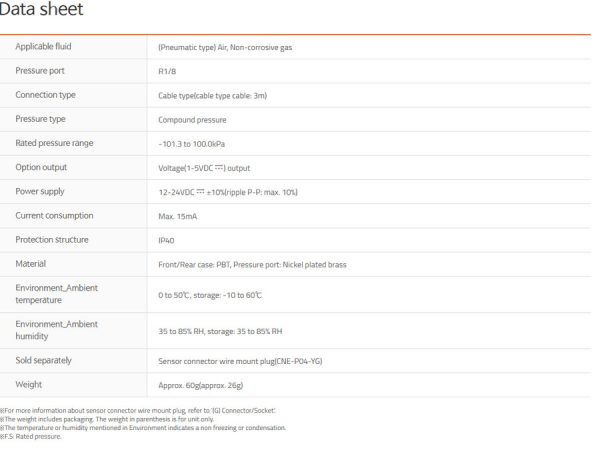

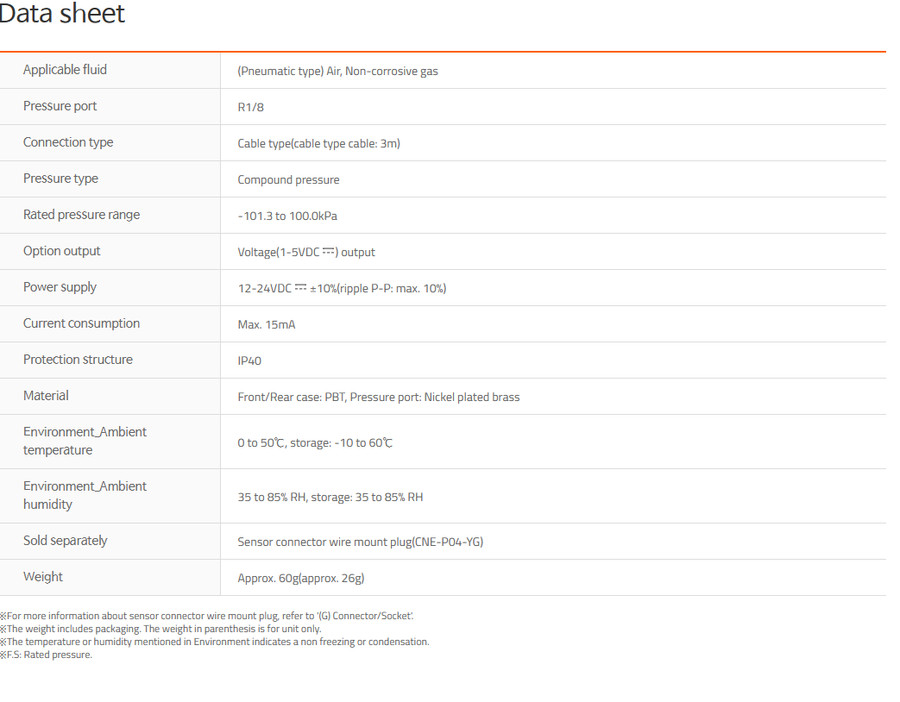

Description
Applicable fluid : (Pneumatic type) Air, Non-corrosive gas
Pressure port : R1/8
Connection type : Cable type(cable type cable: 3m)
Pressure type : Compound pressure
Rated pressure range : -101.3 to 100.0kPa
Power supply : 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption : Max. 15mA
Protection structure : IP40
Pressure port : R1/8
Connection type : Cable type(cable type cable: 3m)
Pressure type : Compound pressure
Rated pressure range : -101.3 to 100.0kPa
Power supply : 12-24VDC ±10%(ripple P-P: max. 10%)
Current consumption : Max. 15mA
Protection structure : IP40
