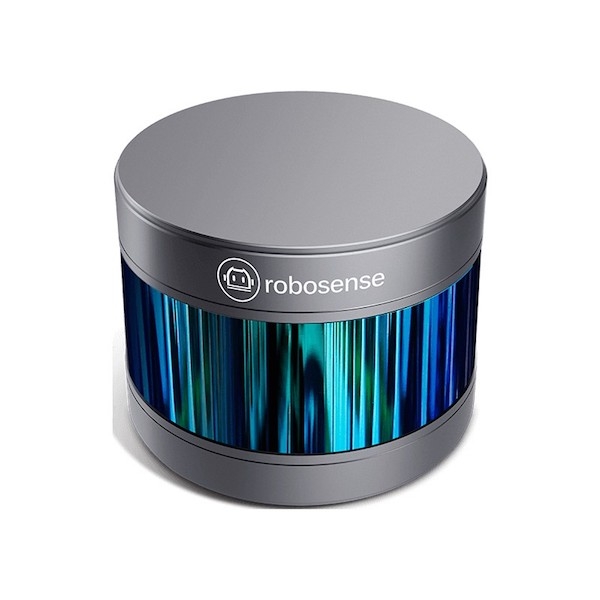

RoboSense RS-LiDAR-16 3D Laser Range Finder

Rp99.999.999

Categories: ,

Description

Deskripsi RoboSense RS-LiDAR-16 3D Laser Range Finder

_x000D_

## perhatian_x000D_
Harga real silahkan kontak kami_x000D_
Software bawaan Lidar hanya untuk melihat fungsi sensor dan masih perlu diolah_x000D_
Jika ingin memesan software olahan yang sudah diintegrasikan dengan robot dan mobil otonomus silahkan kontak kami ._x000D_
_x000D_
***_x000D_
Technical specifications of the RoboSense 16 Beam Laser Range Finder_x000D_
ROS compatible_x000D_
Laser beams: 16_x000D_
Wavelength: 905 nm_x000D_
Laser class: 1_x000D_
Accuracy: ±2 cm_x000D_
Detection range: 20 cm to 150 m (20% reflectivity)_x000D_
Data rate: 320,000 pts/s_x000D_
Field of view (vertical): +15° to -15° (30°)_x000D_
Angular resolution (vertical): 2°_x000D_
Field of view (horizontal): 360°_x000D_
Angular resolution (horizontal/azimuth): 0.09° to 0.36° (5–20 Hz)_x000D_
Rotational velocity: 300 to 1,200 rpm (5–20 Hz)_x000D_
Input voltage: 9–32 Vdc_x000D_
Power consumption: 9W_x000D_
Protection: IP67_x000D_
Operating temperature: -10 to +60 °C_x000D_
Data type: spatial coordinates/intensity_x000D_
Dimensions: 82.7 mm (H) x 109 mm (φ)_x000D_
Weight: 840 g (without cables)
