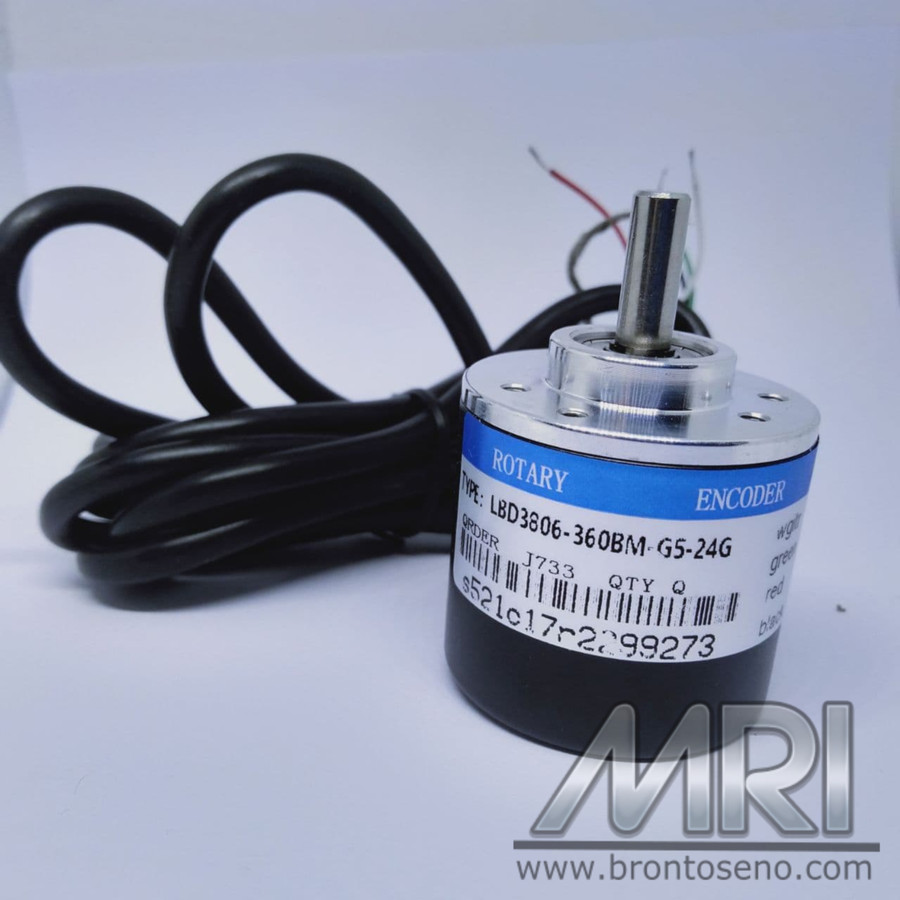

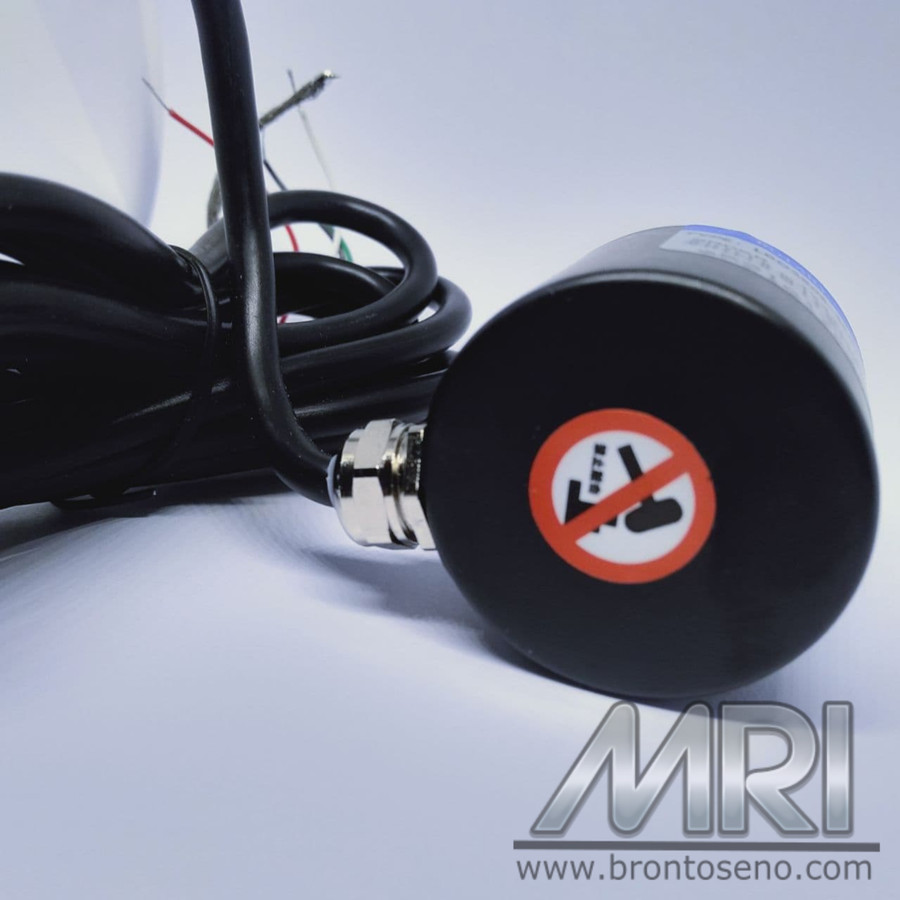

Rotary Encoder 360 P/R 5V-24V Incremental Rotary AB 2 Phase 6mm Shaft


39 in stock

SKU: #548 Category:


Features :

600 p/r (Single-phase 360 pulses /R,Two phase 4 frequency doubling to 1400 pulses)
Power source: DC5-24V
Shaft: 6*13mm/0.23*0.51″
Size: 38*35.5mm/1.49*1.39″
Output :AB 2phase output rectangular orthogonal pulse circuit, the output for the NPN open collector output type
Maximum mechanical speed: 5000 R / min
Response frequency: 0-20KHz
Cable length: 1.5 meter
Notice:AB 2phase output must not be directly connected with VCC, otherwise, will burn the output triode, because different batches, and may not have the terminal

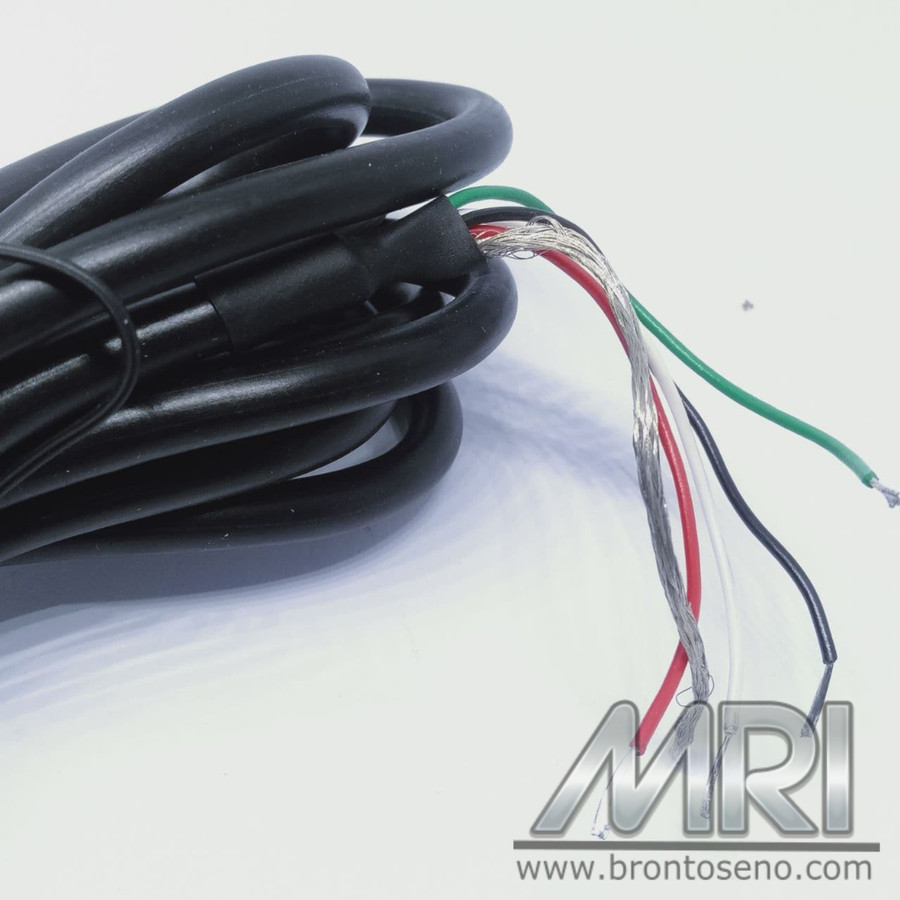

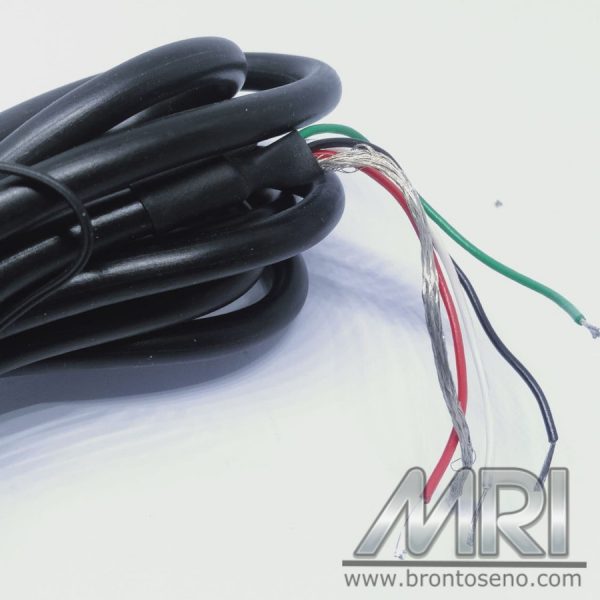

Green = A phase, white = B phase, red = Vcc power +, black = V0
Is used to measure the rotational speed, Angle and acceleration of the object and the length measurement
Suitable for intelligent control of various displacement measurement, automatic fixed-length leather automatic guillotine machines, steel cut length control, civil measured height human scale, Students racing robots

Package includes:

1 x Encoder 360P/R Incremental Rotary Encoder
