STM32F407VGT6 STM32F407 VGT6 ARM Microcontroller STM32 32-bit AU01

Description

Deskripsi STM32F407VGT6 STM32F407 VGT6 ARM Microcontroller STM32 32-bit AU01

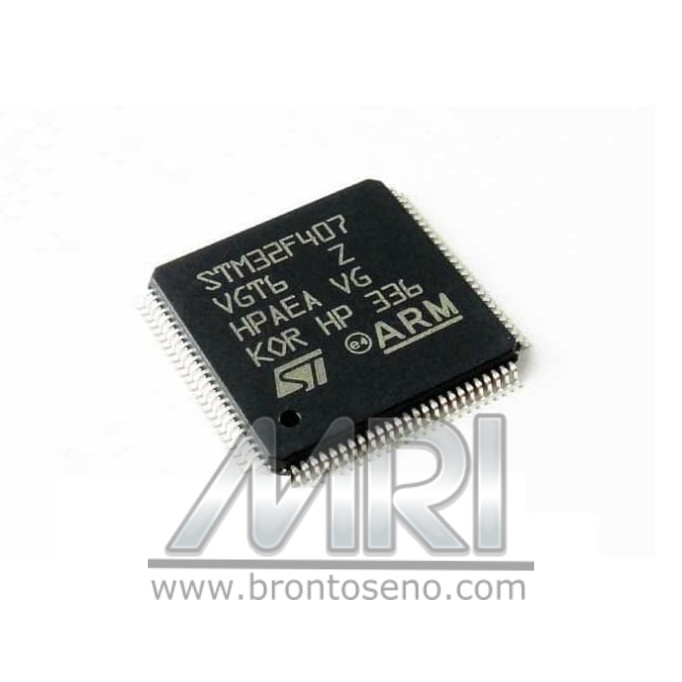

ARM STM32F407VGT6 Based Microcontroller STM32 32-bit LQFP100 AU01
Description:
The STM32F407VGT6 is a part of STM32F4 series 32 Bit Microcontroller. It has an storage temperature ranging from – 65 C to + 150 C and it is available in LQFP-100 Packaging.

The STM32F407 family is based on the high-performance ARMCortex-M4F 32-bit RISC core operating at a frequency of up to 168 MHz. The Cortex-M4F core features a Floating point unit (FPU) single precision which supports all ARM single-precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security.

Features:
Memories:
Up to 1 Mbyte of Flash memory
Up to 192+4 Kbytes of SRAM including 64-Kbyte of CCM (core coupled memory) data RAM
Flexible static memory controller supporting Compact Flash, SRAM, PSRAM, NOR and NAND memories
LCD parallel interface, 8080/6800 modes
Clock, reset and supply management:
1.8 V to 3.6 V application supply and I/Os
POR, PDR, PVD and BOR
4-to-26 MHz crystal oscillator
Internal 16 MHz factory-trimmed RC (1% accuracy)
32 kHz oscillator for RTC with calibration
Internal 32 kHz RC with calibration
Low Power
Sleep, Stop and Standby modes
VBAT supply for RTC, 2032 bit backup registers + optional 4 KB backup SRAM
312-bit, 2.4 MSPS A/D converters: up to 24 channels and 7.2 MSPS in triple interleaved mode
212-bit D/A converters
General-purpose DMA: 16-stream DMA controller with FIFOs and burst support
Debug mode:
Serial wire debug (SWD) & JTAG interfaces
Cortex-M4F Embedded Trace Macrocell
Up to 140 I/O ports with interrupt capability:
Up to 136 fast I/Os up to 84 MHz
Up to 138 5 V-tolerant I/Os
