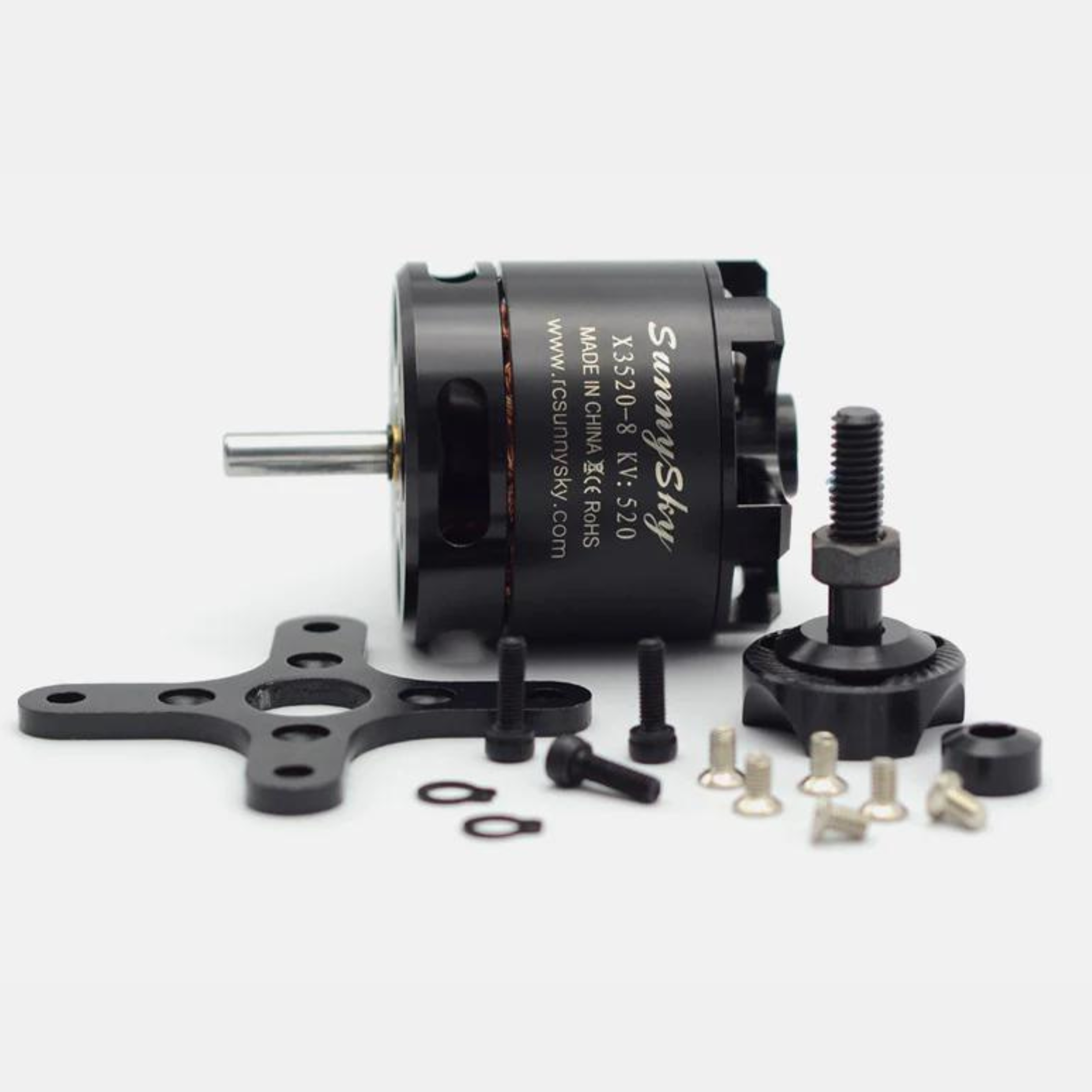

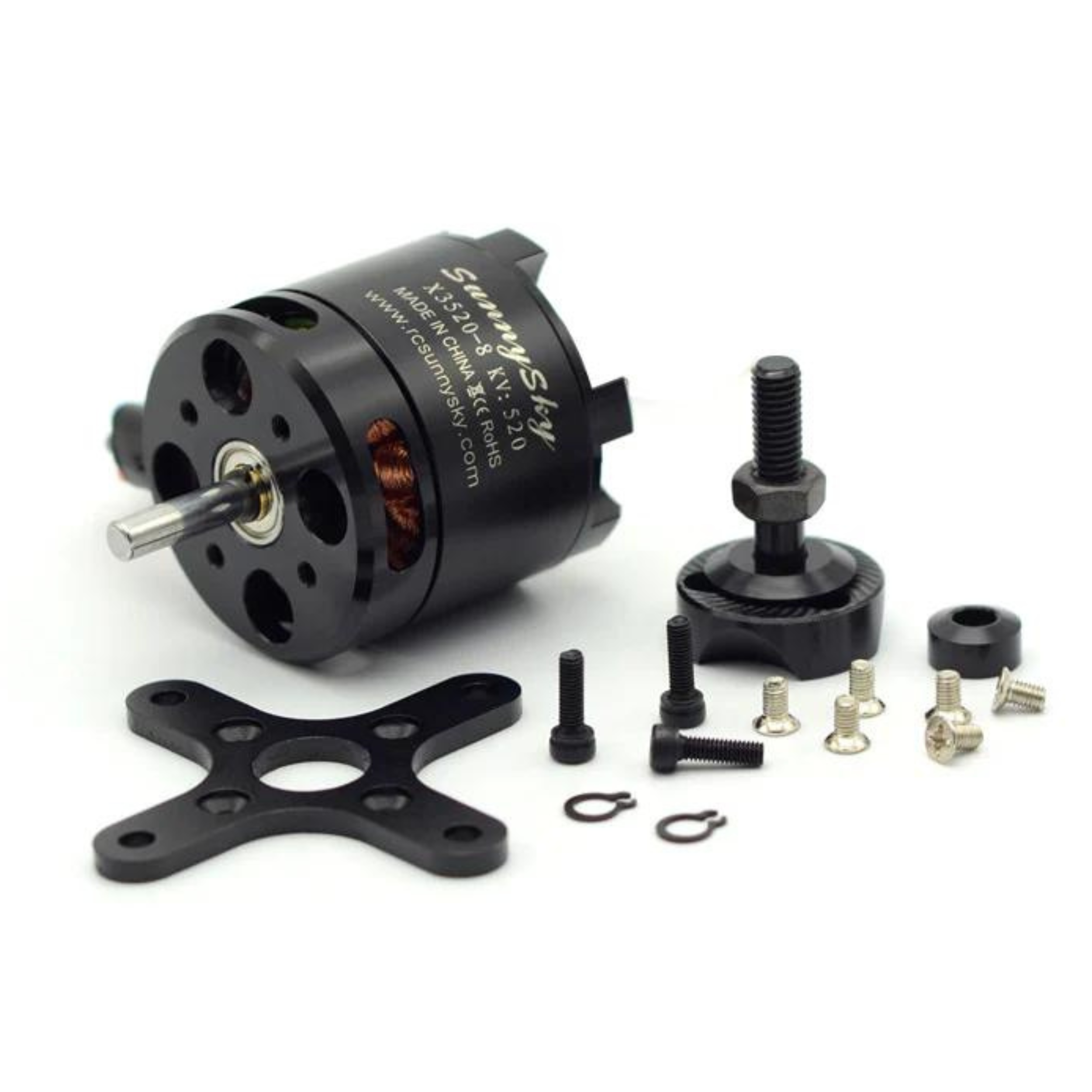

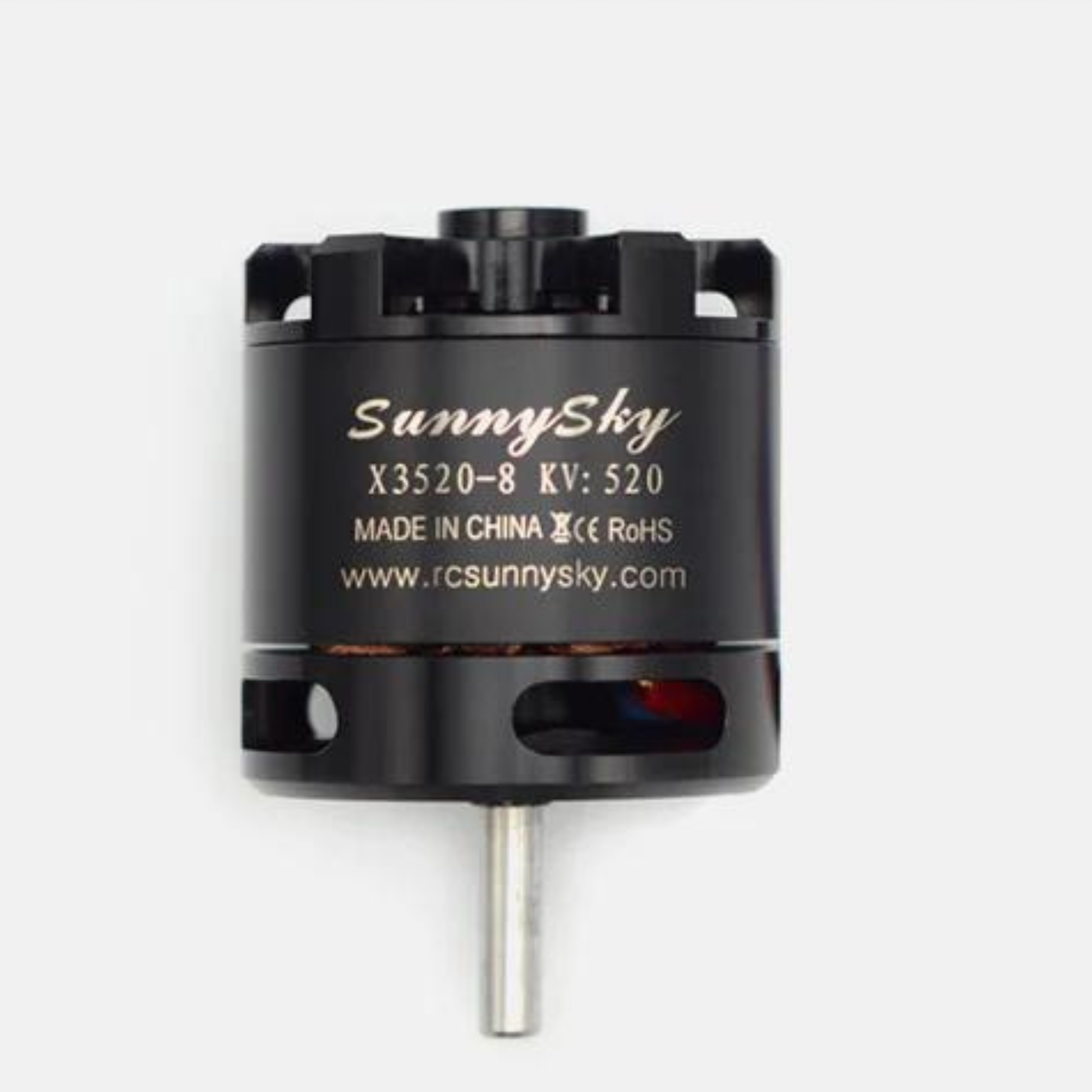

SunnySky X3520 KV520 Brushless Motors X 3520 KV 520


1 in stock



Diameter 35mm
Rotor Diameter 42.5mm
Stator Thickness 20mm
Shaft Diameter 5mm
No.of Stator Slots 12
Body Length (Without Shaft) 45mm
No.of Rotor Poles 14
Body Length 64mm
Motor Kv 520
Max Lipo Cell 4-6S
No-load current 1.1A/10V
ESC 80-100A
Motor Resistance 30mΩ
Recommended Prop(inch) APC12*6/APC12*8/APC13*6.5/APC13*8/DXL14*8
Max Continuous Current 70A/30s
Max Continuous Power 1750W
Weight 207g

Additional information

Weight 450 g
