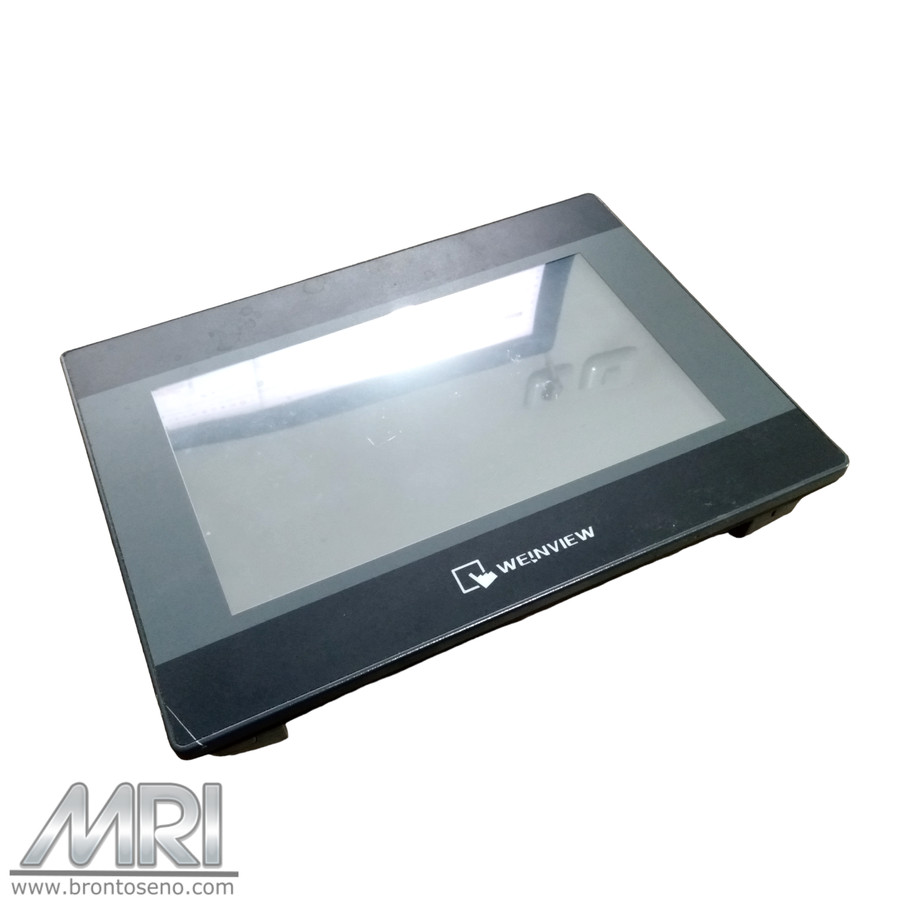

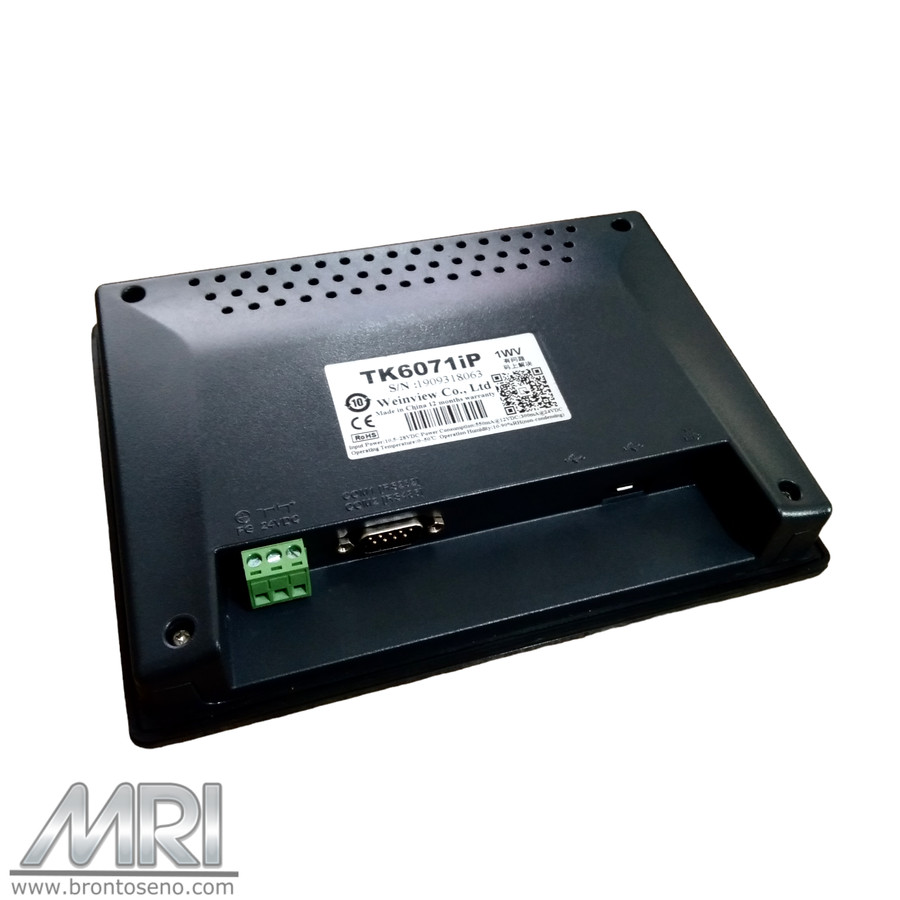

Weinview 7 inch HMI TK6071IP PLC Touch Screen Control Panel PC64

Weinview 7 inch HMI TK6071IP PLC Touch Screen Control Panel PC64

Features:
Name: Weintek HMI TK6071IP
Display type: 7″ TFT
Definition (WxH dots): 800 x 480
Reveal the luminance (cd/m2): 350
Contrast degree: 500:1
Type in a poor light: LED
Life-span in a poor light: 30,000 hours
Reveal color: 65536
Touch-control panel:
Memory:
Flash reservoir (MB): 128
DRAM (MB): 64
Processor: RISC 400MHz
Mini USB downloads the mouth USB 2.0 x 1
COM connector Com1: RS-232/RS-485 2w/4w
Power
Input the power 24± 20%VDC
Power power consumption 300mA@24VDC

Specification:
Trepan the size (mm) 192 x 138
Weight (kg): 0.8 kg
Operating environment
Protection grade NEMA4 / IP65
Store the ambient temperature -20° ~60° C (-4° ~140° F)
Use the ambient temperature 0° ~50° C (32° ~122° F)
Use the ambient humidity 10% ~ 90% @ 40° C, have not condensed

Applications:
Weinview HMI, couple with PLC, can be used on such field as glue pudding machine, printing machinery industry, tire industry, food machinery, fryer, toughening furnace, textile industry, packaging machinery industry, charging piles, incubation industry, SCADA System, pharmaceutical machinery industry, sewage disposal monitoring system, solar photovoltaic grid-connected inverter, plastic industry, hybrid electric bus industry, screw compressor, electrical power engineering, speed frames.
