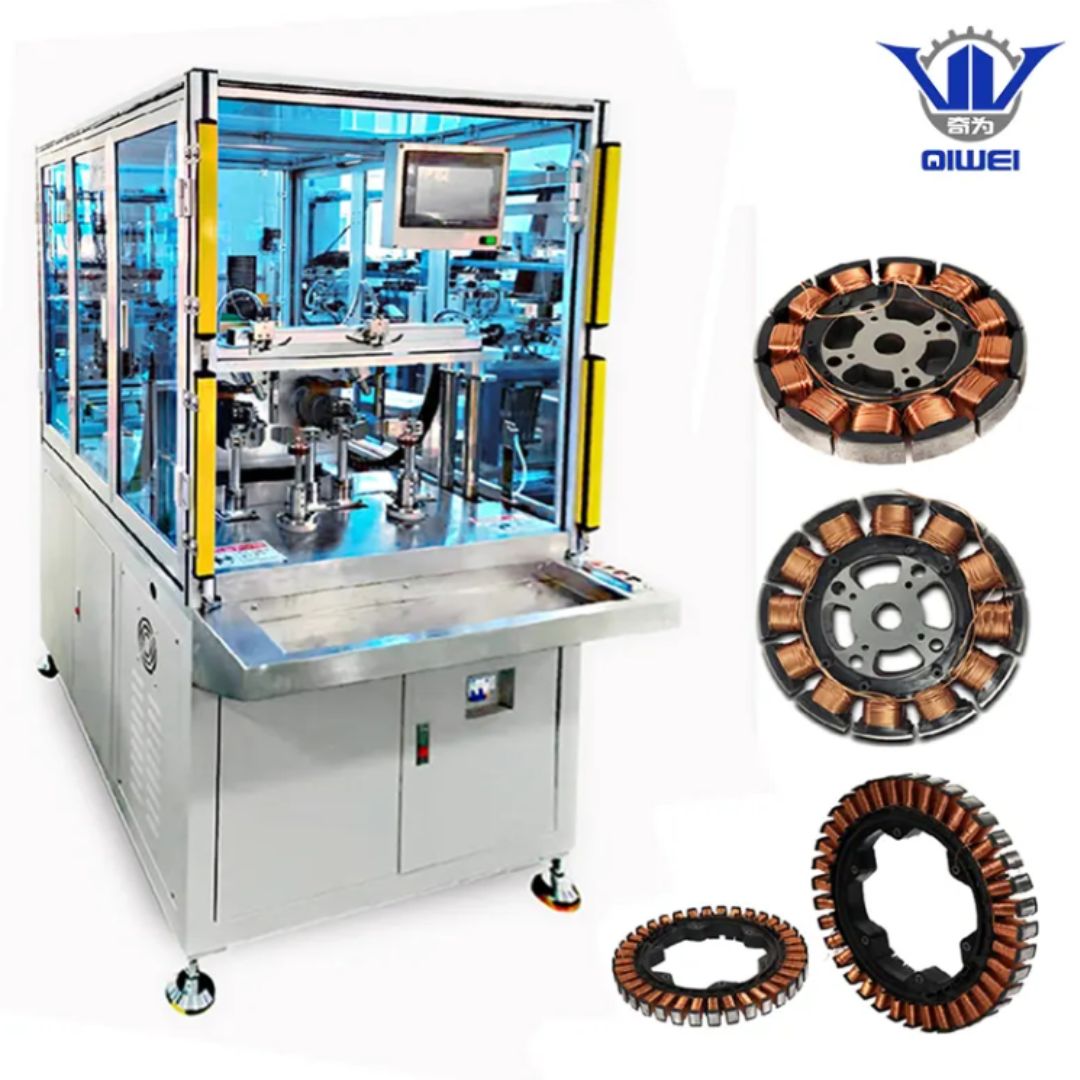

Wholesale Automatic Patented Coil Winding Machine

High-Precision Equipment for Automatic Coil Winding Applications

This coil winding machine is specifically designed for the manufacturing industry of transformers, motors, and other electronic devices that require precise and efficient copper wire winding. Equipped with a CNC system and high accuracy, the machine delivers consistent and neat windings—ideal for both small and large-scale production.

Main Specifications:

• Product Name: Transformer Coil Winding Machine
• Function: Automatic Coil Forming Tool
• Machine Type: CNC / Toroid Taping Machine
• Brand: QIWEI
• Origin: Guangdong, China
• Maximum Transformer Capacity: 5 kVA
• Wire Type: Copper Wire

Technical Specifications:

• Maximum Load Capacity: 10 kg
• Shaft Length: 1 mm
• Center Height: 2 mm
• Wire Diameter Range: 0.1 – 1 mm
• Dimensions (L × W × H): 1100 × 760 × 1600 mm
• Machine Weight: 350 kg
• Winding Speed: Up to 2000 rpm (depending on product type and wire diameter)
• XYZ Axis Movement Precision: 0.01 mm
• Angular Calculation Accuracy: 0.1°
• Input Voltage: 220V ±10% / 50Hz
• Installed Power: 2.5 kW
• Air Supply Pressure: 0.45 – 0.7 MPa

Key Features:

• Patented high-precision product
• Video inspection and test reports available upon request
• Main components: PLC, Engine, Motor
• Warranty: 1 year

Applications:

This machine is used in coil winding processes for the production of transformers and various other electronic components that require high-precision copper winding.
